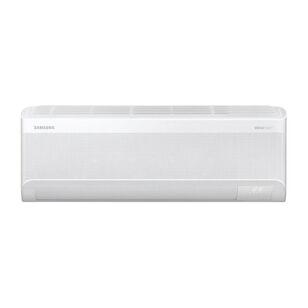

Samsung WindFree™ DVM S Series AM009FEVDCG/AA High Wall Indoor Unit, 208-230 V, 0.25 A, 1 Phase, HIPS
Samsung WindFree™ DVM S Series AM009FEVDCG/AA High Wall Indoor Unit, 208-230 V, 0.25 A, 1 Phase, HIPS
Samsung High Wall Indoor Unit, DVM S Series, Model: AM009FEV, 208-230 V, 0.25 A, 30 W, 60 Hz, 1 ph Phase, 3 Fan Speeds, 9500 Btu/hr Cooling, 10500 Btu/hr Heating, 300 cfm, Connection Type: Flared, 15 A Fuse Rating, 34 dBA Sound Level, Wall Mounting, HIPS, 32-5/16 in Overall Length, 8-1/2 in Overall Width, 11-13/16 in Overall Height, Additional Information: R-32 Refrigerant
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,778.76 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional InformationR-32 Refrigerant
Amperage Rating0.25
BTU Rating9500 Btu/hr Cooling, 10500 Btu/hr Heating
CFM Rating300
Connection TypeFlared
Frequency Rating60
Fuse Rating15
IndustryHVAC
MaterialHIPS
ModelAM009FEV
Mounting TypeWall
Number of Fan Speeds3
Overall Height11-13/16
Overall Length32-5/16
Overall Width8-1/2
Phase1
Power Rating30
SeriesDVM S Series
Sound Level34
Voltage Rating208-230
Additional Information
AHRI Certified|cETLus Listed
Features & Benefits
- Compatible with R-32 DVM S2+, DVM S+ Water, and DVM S Mini systems The indoor unit shall feature WindFree™* mode. When activated in cooling mode the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit preventing cold air drafts on occupants. The indoor unit shall have integral Wi-Fi capability as standard to allow control and monitoring using the Samsung SmartThings app. The indoor unit chassis shall be UL94 V0 with a galvanized steel mounting bracket The indoor unit shall have easy access to wire, pipe, and drain connections via the access panel on the bottom of the unit for simple installation and service The heat exchanger shall be mechanically bonded fin to copper tube Refrigerant flow shall be controlled by an electronic expansion valve at the indoor unit The indoor unit shall include an R32 alarm output plug for simple notification or interlock of third-party equipment upon R32 leak detection (MIM-B14U accessory required). The indoor fan shall be a single, antibacterial cross-flow type Three fan speeds and auto settings Automatic (motorized) vertical swing (up/down) and horizontal swing (left/right) louvers Control wiring shall be 2 X 16 AWG. The unit shall be operated via a wired remote controller model MWRWG01UN, purchased separately. Dual set temperature support when connected to supported wired controllers. The indoor unit shall have a simple connection for condensate overflow detection devices or any normally closed contact for simple unit shutdown. 7-segment digital display on the front of the unit to display temperature and unit status Washable main filter as standard accessible from the top of the unit Emergency Temperature Output (ETO) function: when indoor unit is in error status or when room temperature exceeds a configurable temperature level, the system outputs a signal to an external source (e.g., backup system, building management system, alert device like status light, warning lamp, or buzzer).
Samsung WindFree™ DVM S Series AM009FEVDCG/AA High Wall Indoor Unit, 208-230 V, 0.25 A, 1 Phase, HIPS
BrandSamsung
MFG #AM009FEVDCG/AA
Keller #1480533
My Part ##
Last Ordered#
$1,778.76 / ea
