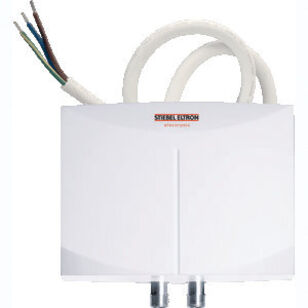

Stiebel Eltron Mini™-E Series 206429 Tankless Water Heater, 0.026 gal, 5.5 kW, 1 ph, 277 V
Stiebel Eltron Mini™-E Series 206429 Tankless Water Heater, 0.026 gal, 5.5 kW, 1 ph, 277 V
Stiebel Eltron Tankless Water Heater, Mini™-E Series, 0.026 gal Capacity, 5.5 kW, 0.3 gpm Flow Rate, 0.96 Energy Factor, 98 % Efficiency, 20 A, 277 V, 50/60 Hz, 1 ph Phase, 3/8 in Connection, 150 psi, 12 AWG Wire, Lead-Free, 30 to 50 deg C, 6-1/2 in H x 7-1/2 in W x 3-1/4 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$360.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandStiebel Eltron
Amperage Rating20
Capacity0.026
Connection Size3/8
Dimensions6-1/2 " H x 7-1/2 " W x 3-1/4 " D
Efficiency98
Energy Factor0.96
Flow Rate0.3
Frequency Rating50/60
Phase1
Power Rating5.5
Pressure Rating150
SeriesMini-E Series
Temperature Rating30 to 50
Voltage Rating277
Wire Size12
Additional Information
cETLus Listed|WAQ
Features & Benefits
- Code-compliant thermostatic control Factory set at 100 deg F (38 deg C) Unlimited supply of hot water for handwashing Temperature output is adjustable between 86-122 deg F (30-50 deg C) via a potentiometer under the cover Mini™-E is suitable for booster applications, accepting maximum incoming water temperature of 122 deg F (50 deg C) Proven reliability Same extremely compact design as mechanical Mini™ that can be mounted in plain sight Can be mounted above or below fixture with fittings pointing up or down Pre-wired pigtail included
Marketing Information
The Stiebel Eltron Mini™ tankless water heaters are designed for installation at the point-of-use. The Mini™ heats water instantaneously as it flows through the unit. Stand-by heat-losses are completely eliminated. The efficient heating elements are controlled by a simple flow switch. Additionally, all Mini™ water heaters are equipped with a safety high-limit with manual reset.
Stiebel Eltron Mini™-E Series 206429 Tankless Water Heater, 0.026 gal, 5.5 kW, 1 ph, 277 V
BrandStiebel Eltron
MFG #206429
Keller #1483972
My Part ##
Last Ordered#
$360.00 / ea
