M-VCO 1570CB2SC-3IN CS CKV
M-VCO 1570CB2SC-3IN CS CKV

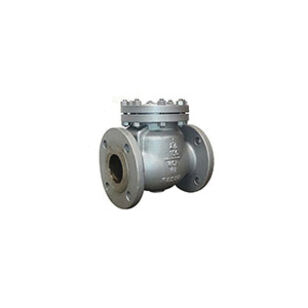

Milwaukee Valve Swing Check Valve, Horizontal, Series: 1570CB2, 3 in Nominal, Flanged End Style, 150 lb Pressure Class, -20 to 800 deg F, No Low Lead Compliance, 9-1/2 in Inlet to Outlet Length, 6.57 in Top to Inlet Center, Cast Carbon Steel Body, Cr-13/Cast Carbon Steel Trim, Graphite Softgoods
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,259.82Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandMilwaukee Valve
Body MaterialCast Carbon Steel
End StyleFlanged
Inlet to Outlet Length9-1/2"
Low Lead ComplianceNo
Nominal Size3"
Pressure Class150 lbs.
Series1570CB2
Softgoods MaterialGraphite
Temperature Rating-20 to 800
Top to Inlet Center6.57"
Trim MaterialCr-13/Cast Carbon Steel
TypeHorizontal
Additional Information
ASME B16.10|API 8 Trim|ASTM A216 WCB Body/Disc|PROP65: Cancer and Reproductive Harm. For more information visit www.p65warnings.ca.gov.
Features & Benefits
- Pinned rotating disc for improved sealing Seat faces lapped for improved sealing Seat rings are sealed welded for stable shut-off Heat codes and MTR's provided for traceability of each valve Carbon steel washer, 65Mn spring washer, carbon steel adjuster washer, graphite and stainless steel core Softgoods materials Cr-13 stem/cast carbon steel disc
M-VCO 1570CB2SC-3IN CS CKV
BrandMilwaukee Valve
MFG #1570CB2SCM030
Keller #1484654
My Part ##
Last Ordered#
$5,259.82Â /Â ea
