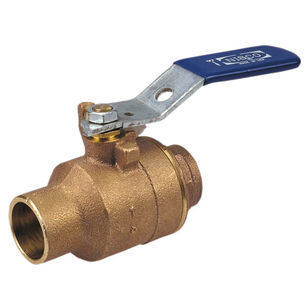

NIBCO S585-70-1IN BRZ BALL VALVE NOT FOR POTABLE USE
NIBCO S585-70-1IN BRZ BALL VALVE NOT FOR POTABLE USE
NIBCO® Ball Valve, S-585-70 Series, 1 in Nominal, Female C Connection, Full Port, 2-Piece, 600 psi, 1 in Orifice, 3-3/4 in Inlet to Outlet Length, 2.38 in Top to Inlet Center, Quarter-Turn Lever Handle Operator, Material Standard: ASTM B371 UNS C69300, ASTM B99 UNS C65100, ASTM B16 UNS C36000, ASTM B124 UNS C37700, ASTM B584 UNS C84400, Bronze Body, RPTFE Seat, Silicon Bronze Alloy Stem, RPTFE Seal, PTFE Packing, Steel Handle, Brass Ball, Contains Lead, 400 deg F, 6.54 in L x 2.04 in W x 3.42 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$131.10 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
ApplicationFor HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas and natural gas applications
Ball MaterialBrass
Body MaterialBronze
Configuration2-Piece
Connection TypeFemale C
Dimensions6.54 " L x 2.04 " W x 3.42 " H
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length3-3/4
Material StandardASTM B371 UNS C69300, ASTM B99 UNS C65100, ASTM B16 UNS C36000, ASTM B124 UNS C37700, ASTM B584 UNS C84400
Nominal Size1
Operator TypeQuarter-Turn Lever Handle
Orifice Size1
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seal MaterialRPTFE
Seat MaterialRPTFE
SeriesS-585-70 Series
Stem MaterialSilicon Bronze Alloy
Temperature Rating400
Top to Inlet Center2.38
Warranty5 Year Limited
Additional Information
MSS SP-110
Features & Benefits
- Valve pressure rating 600 psi non-shock cold working pressure Chrome-plated brass ball, silicon bronze stem Blow-out-proof stem Standard lever handle Dezincification-resistant Use in US drinking water applications is prohibited after January 3, 2014
Documents
Marketing Information
The NIBCO® two-piece ball valve features solder ends for quick and efficient installation. The full port bronze ball valve provides bubble tight shutoff at 600 psi. The valve's reinforced PTFE seat ring and brass hard chrome-plated ball exhibit high chemical resistance properties and is recommended for many high pressure applications.
