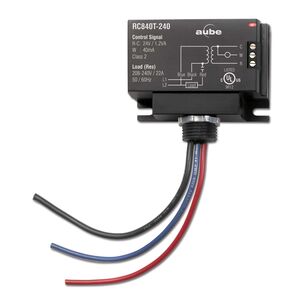

HW RC840T-240/U ELECTROMECHANICAL ELECTRIC HEAT RELAY WITH BUILT-IN TRANSFORMER 208- 240 /24V
HW RC840T-240/U ELECTROMECHANICAL ELECTRIC HEAT RELAY WITH BUILT-IN TRANSFORMER 208- 240 /24V
Resideo Electromechanical Relay, 60 Hz Frequency, ON/OFF Contact Form, 4 to 140 deg F, 3-7/32 in W x 1-13/32 in D x 2-9/32 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$239.77 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Contact FormON/OFF
Dimensions3-7/32 " W x 1-13/32 " D x 2-9/32 " H
Frequency Rating60
Temperature Rating4 to 140
Additional Information
cUL Listed|UL Listed
Features & Benefits
- Direct replacement for any brand name relay Built - in 24 V transformer for easy installation Compatible with 24V thermostats with 2 - wire connections (R,W) or 3 - wire connections (R,W,C) Immediate relay activation provides improved temperature control and comfort Epoxy - soundproofed relay ensures quiet operation Terminal board connection enables easy installation Low current consumption means multiple relays can be controllers by a single thermostat Inductive load - 0.8 hp at 120 VAC, full load - 16 A at 120 VAC, locked rotor - 42 A at 120 VAC 24V/40 mA/1.2 VA control signal 12 AWG terminal wire Control a line voltage resistive load from a low voltage thermostat
Marketing Information
Compatible with 2 and 3-wire thermostat, this all-in-one relay includes a built-in 24 V transformer.
HW RC840T-240/U ELECTROMECHANICAL ELECTRIC HEAT RELAY WITH BUILT-IN TRANSFORMER 208- 240 /24V
BrandHoneywell
MFG #RC840T-240/U
