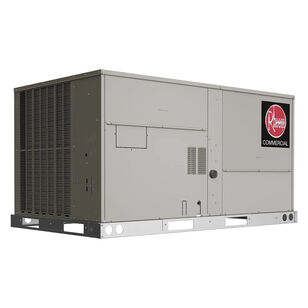

Rheem® Renaissance™ RGEC Line Classic® Series RGECYB048ACU07BAAAA0 Packaged Gas Electric Unit, 48000 Btu/hr Input, 4 ton
Rheem® Renaissance™ RGEC Line Classic® Series RGECYB048ACU07BAAAA0 Packaged Gas Electric Unit, 48000 Btu/hr Input, 4 ton
Rheem® Packaged Gas Electric Unit, RGEC Line Classic® Series, Model: 048ACU, Input BTU Rating: 48000 Btu/hr, Output BTU Rating: 75000 Btu/hr, 208-230 V, 30 A, 14.07 kW Wattage, 3/4 hp, 1050 rpm Rotational Speed, 60 Hz, 3 ph, Scroll Compressor, 2-Stage, 1570 cfm, 1600 cfm, 10.6 EER Rating, 13.4 SEER, 81 % AFUE Rating, Tonnage: 4 ton, 1 Stages, R-454B Refrigerant, 85.3 dB Decibel, Rooftop Mounting, Vent, Ducted or Ductless: Ducted, Direct Spark Ignition, Direct Drive, Blower Size: 11 x 11 in, 1-Row, 20 FPI, 8.41 sq-ft Face Area Coil, 3/4 in Connection, 3/4 in Drain Connection, 2 x 16 x 16 in Filter, 35 A Fuse Rating, 81 % Steady State Efficiency, Sheet Metal, Enamel, 120 deg F, 46-3/4 in L x 79-1/4 in W x 41-3/8 in H, Additional Information: CoreCommand™ Control, Small Commercial Cabinet Type, Standard Efficiency
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$20,191.60 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Additional InformationCoreCommand Control, Small Commercial Cabinet Type, Standard Efficiency
AFUE Rating81
Amperage Rating30
Blower Size11 x 11
CFM Rating1570 cfm, 1600 cfm
Coil Rating1-Row, 20 FPI, 8.41 sq-' Face Area
Compressor TypeScroll
Configuration2-Stage
Connection Size3/4
Decibel Rating85.3
Dimensions46-3/4 " L x 79-1/4 " W x 41-3/8 " H
Drain Connection3/4
Drive TypeDirect
EER Rating10.6
Filter Size2 x 16 x 16
FinishEnamel
Frequency Rating60
Fuse Rating35
HP Rating3/4
Ignition TypeDirect Spark
IndustryHVAC
Input BTU Rating48000
MaterialSheet Metal
Model048ACU
Mounting TypeRooftop
Number of Stages1
Output BTU Rating75000
Phase3
Refrigerant TypeR-454B
Rotational Speed1050
SEER Rating13.4
SeriesRGEC Line Classic Series
Steady State Efficiency81
Temperature Rating120
Tonnage4
Voltage Rating208-230
Wattage14.07
Additional Information
AHRI Certified|ASHRAE 90.1|cULus Listed
Features & Benefits
- Optional hot gas reheat (HumidiDry®) available on all models, including single-phase power units for tighter humidity control and better comfort Patented flex-fit filter rack and qwik-clean drain pain for quick, easy service and maintenance Patented Velocifin® gas heat exchanger assembly for better heat transfer and easier service and maintenance PlusOne® Diagnostics comes standard through CoreCommand™ with easy-to-read and understand fault codes, history, and input/output options to meet building compliance needs Optional ClearControl™ includes factory-installed Direct Digital Control (DDC) and sensors for easy connectivity through Modbus®, LonWorks®, or BACnet®
Marketing Information
Renaissance products are designed with a flexible footprint, thoughtfully engineered for easy, direct replacement of most other manufacturer's products without a roof curb adapter. These units also boast industry-leading serviceability features, including the slide out, qwik-clean drain pan, the qwik-slide blower assembly, tool-less access to the patented flex-fit filter rack, and lockable external gauge ports. Units meet or exceed ASHRAE 90.1 energy efficiency levels and are rigorously SEET tested to perform reliably in extreme environments, delivering powerful cooling operations up to 125 deg F.
