ASTM A 126 Class B Body

• Combination of pilots allow for different types of control in one regulator Fatigue-tested diaphragm designed without a piston to prevent danger of sticking Stainless steel internals for excellent durability and resistance to corrosion Maximum allowable pressure: 250 psig at 0 to 450 deg F Maximum allowable temperature: 450 deg F at 0 to 250 psig Patented self scrubbing guide for long, trouble-free service Accurate control of pressure with choice of color coded springs 15 psig and below Horizontal installation 13.6 in inlet to outlet

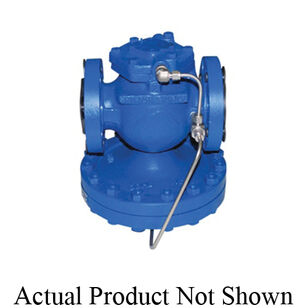

The 25P is a self-actuated pilotoperated pressure regulator. Downstream pressure is fed back through an external sensing line to the pressure pilot,which adjusts the opening of the main valve so as to maintain the set pressure. The main valve can close tight for ANSI/FCI 70-2 Class IV shut off when steam is not required.
