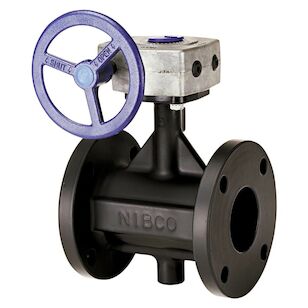

FC27655 2 1/2 FBFV (GEAR OP/FLAT FLG)
FC27655 2 1/2 FBFV (GEAR OP/FLAT FLG)
NIBCO®, Nominal Size: 2-1/2 in, Connection Type: Flanged, Pressure Rating: 200 psi, Body Material: Cast Iron, Seat Material: EPDM Rubber, Seal Material: EPDM Rubber, Operator Type: Quarter-Turn Gear
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,744.00 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialCast Iron
Connection TypeFlanged
IndustryPlumbing
Nominal Size2-1/2
Operator TypeQuarter-Turn Gear
Pressure Rating200
Seal MaterialEPDM Rubber
Seat MaterialEPDM Rubber
Features & Benefits
- Valve pressure rating 200 psi Max temperature rating 200 degrees F Flanged style EPDM encapsulated ductile iron disc Stainless steel stem with metal bushings Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator Not recommended for steam service Designed to meet MSS SP-67 MSS SP-25 (markings)
Documents
Marketing Information
The NIBCO pecent cast iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The internal stem/disc splined drive design eliminates the need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO pecent ductile and cast iron butterfly valves for the most specified, versatile and economical valves option in commercial, mechanical and industrial applications. NIBCO pecent butterfly valves are backed by the NIBCO 5-year 125% limited warranty.
FC27655 2 1/2 FBFV (GEAR OP/FLAT FLG)
BrandNIBCO®
MFG #NLFF50E
Keller #1488016
