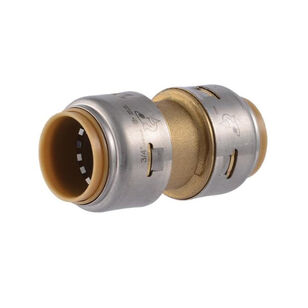

SharkBite™ Max™ UR016A Coupling, 3/4 in Push-to-Connect x 3/4 in Push-to-Connect, Brass
SharkBite™ Max™ UR016A Coupling, 3/4 in Push-to-Connect x 3/4 in Push-to-Connect, Brass
SharkBite™ Coupling, Coupling Fitting, Connection Size 1: 3/4 in, Connection Type 1: Push-to-Connect, Connection Size 2: 3/4 in, Connection Type 2: Push-to-Connect, Connection Type: Push-Fit|Push-Fit, Brass, Material Construction: DZR Lead-Free Brass, For Use With: PEX, Copper, CPVC, PE-RT or HDPE SDR-9 Pipes, 2.6 in L x 1.3 in H, 400 psi, 200 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$15.90 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandCashAcme™
Connection Size 13/4
Connection Size 23/4
Connection TypePush-Fit|Push-Fit
Connection Type 1Push-to-Connect
Connection Type 2Push-to-Connect
Dimensions2.6 " L x 1.3 " H
Fitting TypeCoupling
For use with:PEX, Copper, CPVC, PE-RT or HDPE SDR-9 Pipes
IndustryPlumbing
MaterialBrass
Material ConstructionDZR Lead-Free Brass
Pressure Rating400
Temperature Rating200
Additional Information
ASSE 1061|ASTM E119|ASTM E84|CAN/ULC S101|CAN/ULC S102.2|CSA B125.3|NSF/ANSI 14|NSF/ANSI/CAN 372|NSF/ANSI/CAN 61|UL 263
Features & Benefits
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe. Half the insertion effort, double the pressure rating. Can be installed on wet lines and pressure tested immediately. Stainless steel retainer adds strength and durability. High-performance DZR lead-free brass body. No special tools, crimping, soldering or glue required. Can be rotated after installation. No tube liner required for PEX. Rated to 200degF and 400 psi. Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool.
Documents
Marketing Information
SharkBite Max push-to-connect couplings make for quick and easy installations. Use the straight coupling to quickly connect two pieces of PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe in any combination. Approved for behind-the-wall and underground (when wrapped) applications. SharkBite Max push-to-connect brass pipe connectors are ideal for working in tight spaces and can be leveraged wherever repairs are needed. The faster install time and versatile use reduces installation errors, allowing pros to schedule more jobs in a day.
SharkBite™ Max™ UR016A Coupling, 3/4 in Push-to-Connect x 3/4 in Push-to-Connect, Brass
BrandCashAcme™
MFG #UR016A
Keller #1488759
My Part ##
Last Ordered#
$15.90 / ea
