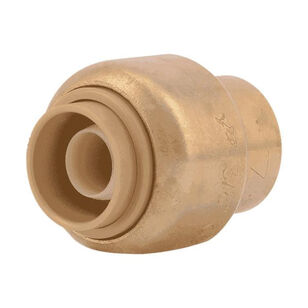

SharkBite™ U512LFA End Cap, 3/8 in Push-to-Connect, Brass
SharkBite™ U512LFA End Cap, 3/8 in Push-to-Connect, Brass
SharkBite™ End Cap, Cap Fitting, Connection Size 1: 3/8 in, Connection Type 1: Push-to-Connect, Connection Type: Push-Fit, Brass, Material Construction: DZR Lead-Free Brass, 1/2 in Tube OD, For Use With: PEX, Copper, CPVC, PE-RT or HDPE SDR-9 Pipes, 1.11 in L, 200 psi, 200 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$12.19 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandCashAcme™
Connection Size 13/8
Connection TypePush-Fit
Connection Type 1Push-to-Connect
Dimensions1.11 " L
Fitting TypeCap
For use with:PEX, Copper, CPVC, PE-RT or HDPE SDR-9 Pipes
MaterialBrass
Material ConstructionDZR Lead-Free Brass
Pressure Rating200
Temperature Rating200
Tube OD1/2
Additional Information
ASSE 1061|ASTM E119|ASTM E84|CAN/ULC S101|CAN/ULC S102.2|CSA B125.3|NSF/ANSI/CAN 372|NSF/ANSI/CAN 61|UL 263
Features & Benefits
- Compatible with PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipe. No special tools, crimping, glue or soldering required. Can be installed in wet lines. Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground). Large diameter fittings (1-1/4 in. - 2 in.) require a Stiffener (sold separately) when connecting to PEX pipe. Remove using a Disconnect Clip or Disconnect Tongs (both sold separately). Rated for 200 psi and 200degF (93degC).
Documents
Marketing Information
Plug the end of PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipe. Innovative push-to-connect design makes for quick and easy installation and removal. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.
SharkBite™ U512LFA End Cap, 3/8 in Push-to-Connect, Brass
BrandCashAcme™
MFG #U512LFA
Keller #1488827
My Part ##
Last Ordered#
$12.19 / ea
