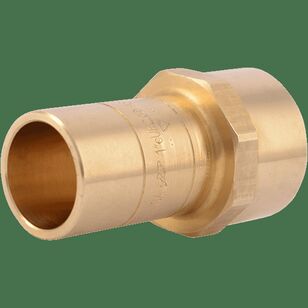

Reliance Worldwide U772LFCA Pipe Adapter, 1 in, Push-Fit x FNPT, Brass/EPDM/Polysulfide/Stainless Steel
MFG #U772LFA
Item #1488829
Mfr. Part #U772LFA
UPC #697285466142
One-side has a copper tube sized (CTS) tailpiece adapter that can be pushed into any SharkBite® fitting. The other side has a FNPT connection. The tube shall be inserted into the SharkBite® PTC Fitting in the first stage through a release collar and then through a stainless steel grab ring. The grab ring has teeth that open out and grip onto the tube. At the second stage the tube shall be pushed through an O-ring protector which aligns the pipe. A specially formulated EPDM O-ring shall be compressed between the wall of the fitting and the tube before the end of the tube reaches the tube stop. Only when the pipe has passed through the O-ring and reached the pipe stop shall a secure joint be created. The fitting shall be a SharkBite® PTC fitting.
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$19.08 / ea
Out of Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandCashAcme™
Connection TypePush-Fit x FNPT
IndustryPlumbing
Length2.83
MaterialBrass/EPDM/Polysulfide/Stainless Steel
Nominal Size1"
Operating Temperature200
Pressure Rating200
Suitable ForCopper, CPVC, HDPE, PEX and PE-RT Tubing
Additional Information
NSF/ANSI/CAN 61 | NSF/ANSI 372
Features & Benefits
No special tools, crimping, glue or soldering required
Can be installed in wet lines
Approved for underground and behind the wall applications with no access panels
Remove using a disconnect clip or disconnect tongs
Instant push-fit connection for increased ease-of-use no soldering, clamps, unions or glue required
Fittings certified to 200 psi and 200 deg F (93 deg C) proven durability and quality
Integrated design means no loose components, ensures secure, reliable connection
Compact, robust lead-free DZR brass body foundation of a strong, corrosion-resistant, durable fitting
