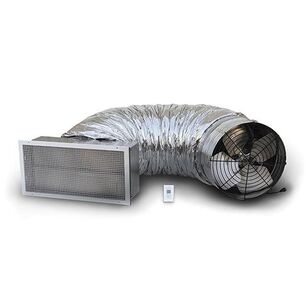

Field Controls Summit S-Class Series VentCool S4 602603104 Whole House Fan, 120 V, 15 A, 1/2 hp, Steel Housing
Field Controls Summit S-Class Series VentCool S4 602603104 Whole House Fan, 120 V, 15 A, 1/2 hp, Steel Housing
Field Controls Whole House Fan, Summit S-Class Series, Model: VentCool S4, 120 V, 15 A, 383.3 W, 1/2 hp, 3 Speed, ECM Motor, 20 ft Cord Length, NEMA 5-15 Plug, 20 in x 7 ft Duct, 56 dBA Sound Level, Wall Mounting, Steel Housing, Galvanized Housing, Additional Information: 14-1/4 x 30-1/4 in Rough Opening, 16 x 32 in Grille Dimension, R-5 Damper Blade, 7.29 sq-ft Attic Venting, 7.29 sq-ft Open Window
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,937.06 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandField Controls
Additional Information14-1/4 x 30-1/4 " Rough Opening, 16 x 32 " Grille Dimension, R-5 Damper Blade, 7.29 sq-' Attic Venting, 7.29 sq-' Open Window
Amperage Rating15
Cord Length20 ft
Duct Size20 " x 7 '
Housing FinishGalvanized
Housing MaterialSteel
HP Rating1/2
ModelVentCool S4
Motor TypeECM
Mounting TypeWall
Number of Speeds3
Plug TypeNEMA 5-15
Power Rating383.3
SeriesSummit S-Class Series
Sound Level56
Voltage Rating120
Features & Benefits
- Reduce or eliminate need for compressor-based cooling 7 ft acoustical silencer insulated flex duct AirLoc™ R-5 gravity damper
Marketing Information
VentCool whole house fans are mechanical ventilation cooling systems. The occupant controlled system allows for low temperature outdoor air to be introduced in a home or building through open windows. The indoor air is circulated to cool the living space and exhausted into the attic where it is then vented to the outdoors. Outdoor air will warm relative to the indoor temperature and the low energy ventilation cooling fan is disengaged and windows closed.
Field Controls Summit S-Class Series VentCool S4 602603104 Whole House Fan, 120 V, 15 A, 1/2 hp, Steel Housing
BrandField Controls
MFG #602603104
Keller #1490646
