Caleffi

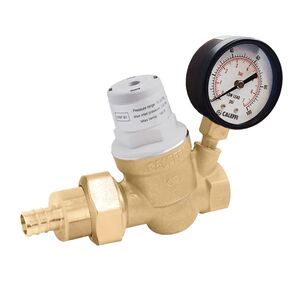

Caleffi PresCal™ Series 533750HA Compact Pressure Reducing Valve, 3/4 in Nominal, PEX Crimp x FNPT, 3 to 5.6 gpm
Caleffi
Caleffi PresCal™ Series 533750HA Compact Pressure Reducing Valve, 3/4 in Nominal, PEX Crimp x FNPT, 3 to 5.6 gpm
MFG #533750HA
Item #1490935
Mfr. Part #533750HA
UPC #8016615613506
Caleffi Compact Pressure Reducing Valve, PresCal™ Series, 3/4 in Nominal, PEX Crimp x FNPT Connection, 250 psi, 3 to 5.6 gpm Flow Rate, Water Media, 4-9/16 in Inlet to Outlet Length, Material Standard: EN 12165 CW724R, AISI 303, AISI 304, Brass Body, Stainless Steel Seat, Stainless Steel Stem, EPDM Seal, Stainless Steel Trim, PTFE Softgoods, Lead-Free, 180 deg F, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$80.40 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandCaleffi
Body MaterialBrass
Connection TypePEX Crimp x FNPT
Domestic/ImportImport
Flow Rate3 to 5.6
IndustryHydronics
Inlet to Outlet Length4-9/16
Lead-FreeYes
Material StandardEN 12165 CW724R, AISI 303, AISI 304
MediaWater
Nominal Size3/4
Pressure Rating250
Seal MaterialEPDM
Seat MaterialStainless Steel
SeriesPresCal Series
Softgoods MaterialPTFE
Stem MaterialStainless Steel
Temperature Rating180
Trim MaterialStainless Steel
Additional Information
ICC-ES Certified|ASSE 1003|CSA B356|IPC Approved|IRC Approved|NPC Approved|NSF/ANSI/CAN 61|NSF/ANSI/CAN 372|UPC Certified
Features & Benefits
- Compact (NPT) Compact pressure reducing valve for residential and light commercial applications Tamper-resistant cap included Low friction anti-scale moving parts. High flow seat design. Adjustment screw for pressure set point
Documents
Marketing Information
CALEFFI, 533750HA, PresCal™. Compact (PEX) Compact pressure reducing valve for residential and light commercial applications. Tamper-resistant cap included. Low friction anti-scale moving parts. High flow seat design. Adjustment screw for pressure set point. connection: 3/4" PRS, PEX crimp union. Maximum operating pressure: 250 psi. Maximum working temperature: 180 degF. Adjustment pressure range: 15 - 80 psi. Maximum flow rate: 10 gpm. Material: DZR low lead brass.
