DIV VB2074V1 3/4 HP 1725 115 V
DIV VB2074V1 3/4 HP 1725 115 V

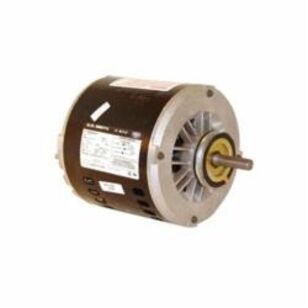

Century® by Packard Evaporative Cooler Motor, Split Phase, Evaporative Cooler Motors Application, 3/4 hp, 115 VAC, 10.6 A, 60 Hz Frequency, 1 ph, 1725 rpm Speed, 1 Speed, Open Enclosure, 56Z Frame, 1/2 in Dia x 1-5/8 in L Shaft, CWSE Rotation, 1 Service Factor, Ball Bearing, Resilient Ring Mounting, Insulation Class: Class B, 6-1/2 in Dia Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$743.09 / ea
Out of Stock
- Attributes
- Features & Benefits
Attributes
BrandDiversiTech®
Amperage Rating10.6
Application TypeEvaporative Cooler Motors
Bearing TypeBall
Dimensions6-1/2 " Dia
Enclosure TypeOpen
Frame56Z
Frequency Rating60
Horsepower3/4
Insulation ClassClass B
Mounting TypeResilient Ring
Number of Speeds1
Phase1
RotationCWSE
Service Factor1
Shaft Size1/2 " Dia x 1-5/8 " L
Speed1725
TypeSplit Phase
Voltage Rating115
Features & Benefits
- Automatic overload Brass current carrying terminal board parts Continuous oil filtration Electro-zinc plated governor parts, dust caps, terminal board cover Heavy magnet wire insulation High viscosity encapsulating varnish Moisture resistance terminal board No ventilation openings in the top portion of the frame 7-1/2 in ring to ring
DIV VB2074V1 3/4 HP 1725 115 V
BrandDiversiTech®
MFG #VB2074V1
Keller #1491113
My Part ##
Last Ordered#
$743.09 / ea
