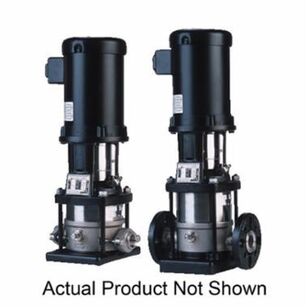

Grundfos CRI Series CRI 3-7 99916445 7-Stage Centrifugal Pump, 1-1/2 hp, 3 ph, 208 to 230/460 V, 15.4 gpm
Grundfos CRI Series CRI 3-7 99916445 7-Stage Centrifugal Pump, 1-1/2 hp, 3 ph, 208 to 230/460 V, 15.4 gpm
Grundfos 7-Stage Centrifugal Pump, Series: CRI, Model: CRI 3-7, 208 to 230/460 V, Amperage Rating: 4.14 to 3.74/1.87 A, 60 Hz Frequency, HP Rating: 1-1/2 hp, Phase: 3 ph, 32 mm Inlet Connection, Outlet Connection Size: 32 mm, 15.4 gpm Flow Rate, Maximum Pressure: 362.59 psi, Maximum Head: 219.8 ft, 3466 rpm Speed, Motor Type: WEG, Motor Speed Rating: 3520 rpm, Service Factor: 1.15, -4 to 248 deg F, Frame: 56C, EPDM/Silicon Carbide/Stainless Steel Housing, 5.91 in Overall Length, 8.27 in Overall Width, 586 mm Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandGrundfos
Amperage Rating4.14 to 3.74/1.87
Flow Rate15.4
Frame56C
Frequency Rating60
Housing MaterialEPDM/Silicon Carbide/Stainless Steel
HP Rating1-1/2
IndustryPlumbing
Inlet Connection Size32
Maximum Head219.8
Maximum Pressure362.59
ModelCRI 3-7
Motor Speed Rating3520
Motor TypeWEG
Outlet Connection Size32
Overall Height586"
Overall Length5.91
Overall Width8.27
Phase3
SeriesCRI
Service Factor1.15
Speed Rating3466
Temperature Rating-4 to 248
Voltage Rating208 to 230/460
Additional Information
AISI 304/316 Specified | EN 1.4301/1.4408 Specified | NSF/ANSI 61 Certified | UL Recognized
Marketing Information
Vertical, multi-stage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via FlexiClamps. The pump is fitted with a 3 ph, fan cooled asynchronous motor.
Grundfos CRI Series CRI 3-7 99916445 7-Stage Centrifugal Pump, 1-1/2 hp, 3 ph, 208 to 230/460 V, 15.4 gpm
BrandGrundfos
MFG #99916445
Keller #1491997
My Part ##
Last Ordered#
Call for Price / ea
