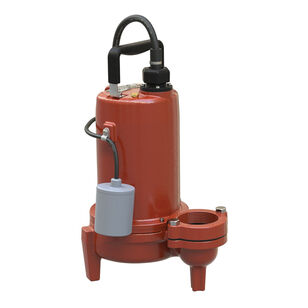

Liberty Pumps® LE100 Series LE103M2-5 Sewage Pump, 208/230 V, 5.3 A, 60 Hz, 1 hp, 160 gpm, Iron
Liberty Pumps® LE100 Series LE103M2-5 Sewage Pump, 208/230 V, 5.3 A, 60 Hz, 1 hp, 160 gpm, Iron
Liberty Pumps® Sewage Pump, LE100 Series, Model: LE103, 208/230 V, 5.3 A, 60 Hz, 1 hp, 1725 rpm, 160 gpm Flow Rate, 3 ph Phase, 2 in Discharge, 50 ft Cord Length, Maximum Feet of Head: 39 ft, Insulation Class: Class B, 104 deg F Continuous-Duty, 140 deg F Intermittent, Iron Impeller, 18.9 in H x 12.6 in W, Iron, Powder-Coated
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,811.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLiberty Pumps®
Amperage Rating5.3
Cord Length50
Dimensions18.9 " H x 12.6 " W
Discharge Size2
FinishPowder-Coated
Flow Rate160
Frequency Rating60
HP Rating1
Impeller MaterialIron
IndustryPlumbing
Insulation ClassClass B
MaterialIron
Maximum Feet of Head39
ModelLE103
Phase3
SeriesLE100 Series
Speed Rating1725
Temperature Rating104 deg F Continuous-Duty, 140 deg F Intermittent
Voltage Rating208/230
Additional Information
cCSAus Certified|SSPMA Certified
Features & Benefits
- Rugged 2 vane, semi-open cast iron impellers Cast iron housings and volute with all stainless steel and brass fasteners Stainless steel shaft Oil-filled, hermetically sealed motors Built-in thermal protection on single-phase models 2" or 3" flanged discharge Permanently lubricated upper and lower ball bearings Unitized shaft seal Single float mechanical level control with piggyback plug for manual bypass operation standard on single-phase automatic models Adjustable pumping range Quick-connect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor (optional longer cord lengths available)
Documents
Marketing Information
Liberty Pumps LE100-Series is a 1 hp sewage pump with 2" solids handling capability. Constructed of heavy cast iron with a tough epoxy powder coat finish and stainless steel fasteners, the LE100 is designed for years of trouble-free performance. Its Quick-connect power cord allows for easy interchange and is available in 10', 25', 35', and 50' lengths. The LE100 can be ordered in 2" or 3" discharge configurations and a wide range of voltages.
