AISI 316 Specified|ACS/EAC/UBA/WRAS Approved|CE Certified|cULus Listed|EN 1.4401 Specified|NSF 61 Specified

• Nordlock© washer ensures secure clamping of pump impellers and provides quick and easy assembly and disassembly Grundfos designed mechanical O-ring shaft seal offers superior dry running capabilities and reduced sticking problems Encapsulated sleeve O-ring design retains O-ring when temperature change causes expansion and contraction Labyrinth seal provides protection for motor bearings and reduces maintenance Filling plug is sealed by O-ring for easy maintenance Energy consumption reduced by up to half compared to fixed speed pumps Reduced installation and wiring cost The functionalities are designed for specific pump applications Wide range of control parameters Rotation indicator allows you to quickly check if 3 ph electrical connection is correct, indicator shows black if correct, white if incorrect

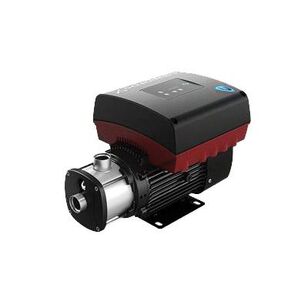

Compact, reliable, horizontal, multi-stage, end suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in high grade stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal NPT pipe threads. The pump is fitted with a 3 ph, fan cooled, permanent magnet, synchronous motor. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
