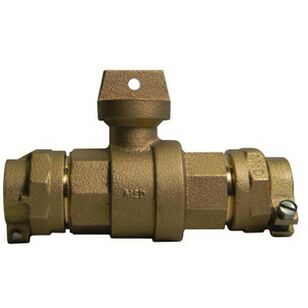

Mc.Donald® 76100-22 Series 5133-154 Ball Style Curb Stop, 3/4 in Nominal, 22 CTS Compression, 300 psig, Brass Body
Mc.Donald® 76100-22 Series 5133-154 Ball Style Curb Stop, 3/4 in Nominal, 22 CTS Compression, 300 psig, Brass Body
Mc.Donald® Ball Style Curb Stop, 76100-22 Series, 3/4 in Nominal, 22 CTS Compression Connection, 300 psig, Full Port, Material Standard: ASTM B584, ASTM B62, UNS C89833, EPDM Softgoods, Brass Body, Finish: PTFE-Coated
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$164.83 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandMc.Donald®
Body MaterialBrass
Color/FinishPTFE-Coated
Connection Type22 CTS Compression
FinishPTFE-Coated
Material StandardASTM B584, ASTM B62, UNS C89833
Nominal Size3/4
Port TypeFull
Pressure Rating300
Series76100-22 Series
Softgoods MaterialEPDM
Features & Benefits
- Manufactured in compliance with ANSI/AWWA C800 (latest revision) Brass components in contact with potable water conform to ASTM B584, UNS C89833 (latest revision) and identified with “NL” Brass components not in contact with potable water conform to ASTM B62 and ASTM B584, UNS C83600 -85-5-5-5 (latest revision) PTFE-coated brass ball rotates 360 deg Rated for 300 psig water pressure Blow out proof EPDM port seals End piece joint sealed with an EPDM o-ring and thread locker Insert stiffeners required on all flexible plastic connection Lead-free
Mc.Donald® 76100-22 Series 5133-154 Ball Style Curb Stop, 3/4 in Nominal, 22 CTS Compression, 300 psig, Brass Body
BrandMc.Donald®
MFG #5133-154
Keller #1494365
My Part ##
Last Ordered#
$164.83 / ea
