ADA Compliant|ASME A112.18.1|CSA C22.2 File No. 120|IAPMO Listed|IGC 115/226|NSF 61/372|NSF/CAN 61|OBC Listed|QBC Listed|TAS Listed|UL 399

• Touch-free sensor operated bottle filler with 20 second max run time ADA compliant when installed properly Up to 1.2 gpm fill rate for quick fill Swing-open cabinet provides easy access to filter Laminar flow water supply Soft ambient white light to indicate filter status Backlit LED light that illuminates bottle filling area when sensor is activated Bottle Counter Display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking Rough-in matches other manufacturers' recommended rough-in locations for easy replacement Prop 65 compliant OPTIONAL: A water filter upgrade can be added to this unit (part number 33830001). Sold separately Chilling capacity of 8.0 gph of 50F drinking water, based on 80F inlet water and 90F ambient Refrigerant R-134A

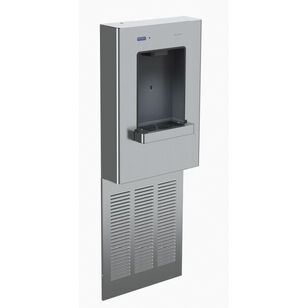

Sloan's DropSpot™ On-wall Bottle Filler Unfiltered Refrigerated Stainless. Chilling capacity of 8.0 gph of 50F drinking water, based on 80F inlet water and 90F ambient. Bottle filler shall include sensor operated activation with a 20 second maximum run time. Bottle counter display indicates the number of 16 oz plastic bottles saved as well as the ounces of water dispensed for water consumption tracking. White light indicates the water filter status. Unit shall include LED lights that illuminate the bottle filling area. Bottle filler housing construction shall be stainless steel with a satin finish. Bottle filler shall provide up to 1.2 gpm flow rate with a laminar flow. Cabinet door shall have swing-open mechanism, providing easy access for filter replacement.
