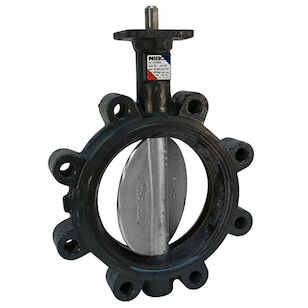

LD30100 2 LUG BFV BARE STEM DUCT IRON
LD30100 2 LUG BFV BARE STEM DUCT IRON
NIBCO®, Nominal Size: 2 in, Connection Type: Lug, Pressure Rating: 250 psi, Body Material: Ductile Iron, Seat Material: EPDM Rubber, Seal Material: EPDM Rubber, Operator Type: Quarter-Turn Bare Stem/Bare Shaft
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$544.00 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialDuctile Iron
Connection TypeLug
IndustryPlumbing
Nominal Size2
Operator TypeQuarter-Turn Bare Stem/Bare Shaft
Pressure Rating250
Seal MaterialEPDM Rubber
Seat MaterialEPDM Rubber
Features & Benefits
- Valve pressure rating 250 psi Lug style EPDM molded-in seat liner Ductile iron disc Stainless steel stem with copper bushings Geometric drive Extended neck Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation Not recommended for steam service Designed to meet MSS SP-67 MSS SP-25 (markings) U.S. Coast Guard Category A
Documents
Marketing Information
The NIBCO pecent ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The unique molded-in EPDM seat liner with ductile iron disc is recommended for most water applications. With the internal stem/disc geometric drive design there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO pecent butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO pecent butterfly valves are backed by the NIBCO 5-year 125% limited warranty.
LD30100 2 LUG BFV BARE STEM DUCT IRON
BrandNIBCO®
MFG #NLG190D
Keller #1497635
My Part ##
Last Ordered#
$544.00 / ea
