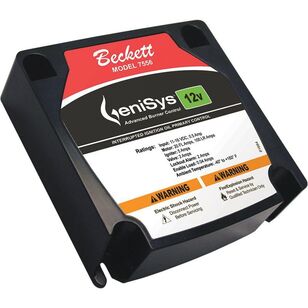

Beckett® GeniSys 7556A0000U Oil Burner Control, 11 - 16 VDC, 160 mA
Beckett® GeniSys 7556A0000U Oil Burner Control, 11 - 16 VDC, 160 mA
Beckett® GeniSys Oil Burner Control, 7556 Model, 11 - 16 VDC, 160 mA, 15 sec Lockout, -40 to 160 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$305.15 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBeckett®
Amperage Rating160
IndustryHydronics
Lockout Time15
Model7556
Temperature Rating-40 to 160
Voltage Rating11 to 16
Features & Benefits
- Programmable valve-on delay and motor-off delay provides chamber cooling after call for heat Welded relay protection with redundant motor relays Epoxy potted for moisture-resistance High ambient temperature rating Alarm output enables visual or audio indication of flame failure and lock out condition Interrupted duty ignition Relight function Fused protection Output - 12 VDC, 20 full load amps (FLA), 100 locked rotor amps motor, 12 VDC, 5 A igniter, 12 VDC, 2 A solenoid valve and lockout alarm 5 - 95% RH, condensing moisture
Marketing Information
The Beckett GeniSys 12 V advanced burner control is a 12 VDC primary safety control for oil burners used on pressure washers, road stripers, crack sealers, hot patchers and asphalt distributors, to name a few examples. The GeniSys 12 V is used with a suitable cad cell flame sensor to control the oil burner motor, igniter and optional solenoid valve. It can provide interrupted or intermittent duty ignition and it has a 15 sec lockout time.
Beckett® GeniSys 7556A0000U Oil Burner Control, 11 - 16 VDC, 160 mA
BrandBeckett®
MFG #7556A0000U
Keller #1498164
