Liberty Pumps®

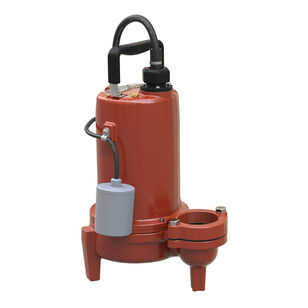

Liberty Pumps® LEH100 Series LEH103M2-5 Sewage Pump, 208/230 V, 9 A, 60 Hz, 1 hp, 197 gpm, Iron
Liberty Pumps®
Liberty Pumps® LEH100 Series LEH103M2-5 Sewage Pump, 208/230 V, 9 A, 60 Hz, 1 hp, 197 gpm, Iron
MFG #LEH103M2-5
Item #1499330
Mfr. Part #LEH103M2-5
UPC #671812180107
Liberty Pumps® Sewage Pump, LEH100 Series, Model: LEH103, 208/230 V, 9 A, 60 Hz, 1 hp, 3450 rpm, 197 gpm Flow Rate, 3 ph Phase, 2 in Discharge, 50 ft Cord Length, Maximum Feet of Head: 54 ft, Insulation Class: Class B, 104 deg F Continuous-Duty, 140 deg F Intermittent, Iron Impeller, 18.93 in H x 12.54 in W, Iron, Powder-Coated
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,013.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLiberty Pumps®
Amperage Rating9
Cord Length50
Dimensions18.93 " H x 12.54 " W
Discharge Size2
FinishPowder-Coated
Flow Rate197
Frequency Rating60
HP Rating1
Impeller MaterialIron
IndustryPlumbing
Insulation ClassClass B
MaterialIron
Maximum Feet of Head54
ModelLEH103
Phase3
SeriesLEH100 Series
Speed Rating3450
Temperature Rating104 deg F Continuous-Duty, 140 deg F Intermittent
Voltage Rating208/230
Additional Information
cCSAus Certified|SSPMA Certified
Features & Benefits
- Rugged 2 vane, semi-open cast iron impellers Cast iron housings and volute with all stainless steel and brass fasteners 17-4 PH® stainless steel shaft Oil-filled, hermetically sealed motors Built-in thermal protection on 1-phase models Permanently lubricated upper and lower ball bearings Unitized shaft seals Single float mechanical level control with series plug for manual bypass operation- standard on 1-phase automatic models Adjustable pumping range Quick-connect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor
Documents
Marketing Information
The LEH100-Series by Liberty Pumps is a high head 2" solids handling sewage pump. Built on the same platform as the LE100-Series, the LEH100 features all heavy cast iron housings, stainless steel fasteners and Liberty Pumps Quick-connect power cord design. Available in 2" or 3" discharge and a variety of voltages, the LEH100-Series has a maximum head of 53 feet and is backed by Liberty Pumps 3-year warranty.
