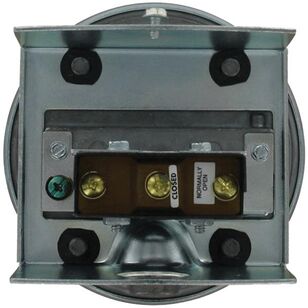

Dwyer® 1823 Series 1823-2 Low Differential Pressure Switch, 15 A Resistive, 120-480 VAC, SPDT
Dwyer® 1823 Series 1823-2 Low Differential Pressure Switch, 15 A Resistive, 120-480 VAC, SPDT
Dwyer® Low Differential Pressure Switch, 1823 Series, 15 A Resistive, 120-480 VAC, 60 Hz, (3) Screw Electrical, 1/8 in FNPT Process Connection, Contact Configuration: SPDT, 0.5 - 2 in-WC Operating, 0.12 in-WC Deadband, 10 lbf/sq-in Continuous, 25 lbf/sq-in Surge, 1/8 hp at 125 VAC, 1/4 hp at 250 VAC, Diaphragm, Vertical Mounting, -30 to 180 deg F, 4 in Dia x 3-27/32 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$130.15 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandDwyer®
Amperage Rating15 A Resistive
Connection Type(3) Screw Electrical, 1/8 " FNPT Process
Contact ConfigurationSPDT
Dimensions4 " Dia x 3-27/32 " D
Frequency Rating60
HP Rating1/8 hp at 125 VAC, 1/4 hp at 250 VAC
Mounting TypeDiaphragm, Vertical
Pressure Rating0.5 - 2 "-WC Operating, 0.12 "-WC Deadband, 10 lbf/sq-" Continuous, 25 lbf/sq-" Surge
Series1823 Series
Temperature Rating-30 to 180
Voltage Rating120-480
Additional Information
UL Listed, CSA Certified, CE Certified, FM Approved
Features & Benefits
- Air and non-combustible, compatible gas service Repetitive accuracy within 2% Screw type inside-mounting spud setpoint adjustment Compact size and repeatability, provides a high-value switch for many industrial applications Designed for panel and wall-mounting and provides easy access that simplifies making adjustments or changes to switch setting
Marketing Information
Essential for industrial environments, the series 1800 combines small size and low price with 2% repeatability for enough accuracy for all but the most demanding applications. Set point adjustment inside the mounting stud permits mounting switch on one side of a wall or panel with adjustment easily accessible on the opposite side.
