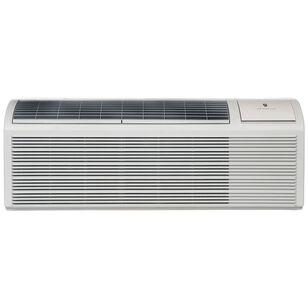

Friedrich® ZoneAire® Premier PDH Series PDH12K3SGR3 Package Terminal Air Conditioner With Electric Heat, 230/208 V
Friedrich® ZoneAire® Premier PDH Series PDH12K3SGR3 Package Terminal Air Conditioner With Electric Heat, 230/208 V
Friedrich® Package Terminal Air Conditioner, PDH Series, 230/208 V, 4.6/4.9 A, 1040/1000 W, 60 Hz, 1 ph Phase, 0.08 hp, 12100/11900 Btu/hr Cooling, 10900/10700 Btu/hr Heating, 340/306 cfm Flow Rate, 11.6/11.8 EER Rating, 2.75 pt/hr Dehumidification Rating, 550 sq-ft Coverage Area, R-32 Refrigerant, Rotary Compressor, Energy Efficiency Ratio: 70 %, Digital Control, Antimicrobial Treated Filter, Non-Programmable, Floor Mounting, Steel, Finish: Galvanized/Zinc-Coated, 42-1/4 in Cutout Width, 21-1/4 in Cutout Depth, 16-1/4 in Cutout Height, 42 in Overall Width, 21 in Overall Depth, 16 in Overall Height, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,796.35 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandFriedrich®
Amperage Rating4.6/4.9
Compressor TypeRotary
Control TypeDigital
Cooling BTU Rating12100/11900
Coverage Area550
Cut Out Depth21-1/4"
Cut Out Width42-1/4"
Cutout Height16-1/4"
Dehumidification Rating2.75
Domestic/ImportImport
EER Rating11.6/11.8
Energy Efficiency Ratio70
Filter TypeAntimicrobial Treated
FinishGalvanized/Zinc-Coated
Flow Rate340/306
Frequency Rating60
Heating BTU Rating10900/10700
HP Rating0.08
MaterialSteel
Mounting TypeFloor
Overall Depth21
Overall Height16
Overall Width42
Phase1
Power Rating1040/1000
Programmable/Non-ProgrammableNon-Programmable
Refrigerant TypeR-32
SeriesPDH Series
Voltage Rating230/208
Additional Information
cULus Listed
Features & Benefits
- Superior materials and design reduce sound levels and improve overall guest satisfaction Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish and are oven-cured at high temperature for exceptional durability Stainless Steel endplates reduce corrosion of the outdoor coil Friedrich PTACs feature a super-efficient refrigeration design with EERs up to 13.0 and COP up to 3.6, energy efficient heat pump models are also available in our complete line Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth Building the quietest air conditioners begins with the design process and continues through the selection of superior components and materials It is shaped by skilled manufacturing and refined through on- going product testing in our engineering lab Friedrich PTACs come standard with two permanently lubricated fan motors for added durability and reduced sound levels indoors Units also have a quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly High-density insulation and steel inner wall block outdoor noise Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters Surehold Front Cover System securely attaches the front each time. Unit may be installed low to the floor
Documents
Marketing Information
Our most efficient standard PTAC with exceptional performance and leading warranty for the lowest cost of operation. ZoneAire® Premier PTAC is available in electric heat and heat pump options, ranging from 7000 to 15000 Btu. Breathe easy with the all-new line-up of FreshAire® IAQ accessories to deliver healthy indoor air.
Friedrich® ZoneAire® Premier PDH Series PDH12K3SGR3 Package Terminal Air Conditioner With Electric Heat, 230/208 V
BrandFriedrich®
MFG #PDH12K3SGR3
Keller #1499740
