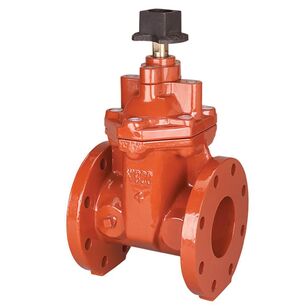

F-619-RWS-SON 3 LF GATE W/SQ OPR NT 300
F-619-RWS-SON 3 LF GATE W/SQ OPR NT 300
NIBCO®, 3 in Nominal, Connection Type: Flanged, 250 psi CWP, Ductile Iron Body, EPDM Rubber Seal, Multi-Turn Square Operating Nut Operator, Lead-Free/Contains Lead: Lead-Free, 16.24 in L x 7.99 in W x 7.52 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,072.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialDuctile Iron
Connection TypeFlanged
Dimensions16.24 " L x 7.99 " W x 7.52 " H
Nominal Size3
Operator TypeMulti-Turn Square Operating Nut
Pressure Rating250 psi CWP
Seal MaterialEPDM Rubber
Additional Information
NSF/ANSI 372
Features & Benefits
- 300 psi/20.7 bar non-shock cold working pressure Maximum operating temperature of 160AºF/71AºC Non-rising stem Bolted bonnet Resilient wedge Fusion bonded epoxy coated body (NSF and FDA certified) Flanged end connections Meets or exceeds performance requirements of AWWA C509 and C515 for 3'' and larger valves
Documents
Marketing Information
The NIBCO pecent resilient wedge ductile iron gate valve features flanged, flat face end connections for easy installation and accessibility. Non-rising stem gate valves are recommended when positive shutoff is required and where space is a premium. These valves may be operated with a hand-wheel or square operating nut and wrench (wrench not included). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO pecent gate valves for one of the most versatile and economical valve option in irrigation, commercial, mechanical and industrial applications. NIBCO pecent valves are backed by the NIBCO 5-year 125% limited warranty.
F-619-RWS-SON 3 LF GATE W/SQ OPR NT 300
BrandNIBCO®
MFG #NSBC07XF
Keller #1499743
