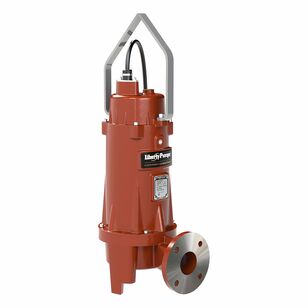

LIBERTY PUMPS Sewage Ejector Pump: Cast Iron, Single Phase, 5 hp, 208 to 230V AC, 51 ft Max. Head
LIBERTY PUMPS Sewage Ejector Pump: Cast Iron, Single Phase, 5 hp, 208 to 230V AC, 51 ft Max. Head
These ejector pumps remove sewage containing solids from basins where a gravity system won't work, such as in septic systems below the main sewer line or lift station.
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6,029.00 / ea
Out of Stock
- Attributes
Attributes
BrandLiberty Pumps®
Body Dia.15-1/2 "
Cord Length35 ' ft
Country Of OriginUSA
Current22.5 A
Discharge3 " Flange
Discharge OrientationHorizontal
Duty CycleContinuous
Flow Rate @ 10' of Head438 gpm
For Media TypeSewage Water
Frequency60 Hz
Hazardous Location ClassNot Rated
Horsepower5 hp
Impeller MaterialCast Iron
Manufacturers Warranty Length1.5 yr
Max. Head51 '
Max. Media Temp.104 °F
Motor Housing MaterialCast Iron
Motor Speed1,725 RPM
Overall Height36 "
PhaseSingle
Power SourceCorded Electric
Product DescriptionThese ejector pumps remove sewage containing solids from basins where a gravity system won't work, such as " septic systems below the main sewer line or lift station.
Rated Voltage208 to 230V AC
Requires Control PanelControl Panel Required
SeriesLSS 500
Shaft Seal MaterialSilicon Carbide
Shaft Seal TypeSingle Mechanical
StandardsCSA Certified; UL Listed
SwitchNot Included
Volute MaterialCast Iron
Width at Widest Point15-1/2 "
LIBERTY PUMPS Sewage Ejector Pump: Cast Iron, Single Phase, 5 hp, 208 to 230V AC, 51 ft Max. Head
BrandLiberty Pumps®
MFG #LSS502-3
Keller #1502143
