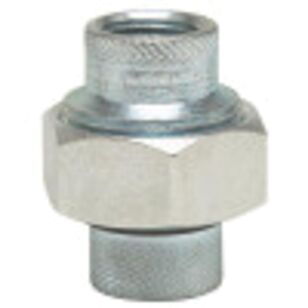

WATTS® 0821931 Dielectric Union, 3/4 in FIP x 3/4 in FIP, Steel, Zinc-Plated
WATTS® 0821931 Dielectric Union, 3/4 in FIP x 3/4 in FIP, Steel, Zinc-Plated
WATTS® Dielectric Union, Union Fitting, 3/4 in Connection Size 1, Connection Type 1: FIP, 3/4 in Connection Size 2, Connection Type 2: FIP, FIP|FIP Connection, Steel, Material Construction: Steel, Finish: Zinc-Plated, 1-7/8 in Hex, 250 psi, 2-1/4 in L, 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$82.25 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Connection Size 13/4
Connection Size 23/4
Connection TypeFIP|FIP
Connection Type 1FIP
Connection Type 2FIP
Dimensions2-1/4 " L
FinishZinc-Plated
Fitting TypeUnion
Hex Size1-7/8
MaterialSteel
Material ConstructionSteel
Pressure Rating250
Temperature Rating180
Features & Benefits
- Designed and manufactured to the highest quality standards Individually factory certified to withstand a minimum of 600 V on a dry line with no flashover Steel tail piece, adapter, nut Polysulfone insulator Buna-N gasket
Documents
Marketing Information
Series LF3004 lead-free dielectric unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and features a female iron pipe thread to female iron pipe thread (galvanized) connection. It consists of a union nut, two tailpieces and a gasket that separates the tailpieces to prevent an electric current from occurring.
