Robertshaw® 2374-510 Air Pressure Sensing Switch Kit, 5 A, 24/120/277 VAC, Quick Connect, SPDT, Polycarbonate
Robertshaw® 2374-510 Air Pressure Sensing Switch Kit, 5 A, 24/120/277 VAC, Quick Connect, SPDT, Polycarbonate
Robertshaw® Air Pressure Sensing Switch Kit, 5 A, 24/120/277 VAC, VA Rating: 125 VA, Connection Type: Quick Connect, SPDT Switching Action, Contact Configuration: SPDT, 0.1 to 10 in-WC, 14 in-WC Over, 1/10 hp at 120 to 277 VAC, Snap-In/Vertical Mounting, Polycarbonate, 28 VA at 24 VAC, 125 VA at 120 VAC Pilot Duty, -40 to 190 deg F, 3 in W x 1-1/2 in H, Additional Information: 1/4 in Connection Size
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRobertshaw®
Additional Information1/4 " Connection Size
Amperage Rating5
Connection TypeQuick Connect
Contact ConfigurationSPDT
Dimensions3 " W x 1-1/2 " H
HP Rating1/10 hp at 120 to 277 VAC
MaterialPolycarbonate
Mounting TypeSnap-"/Vertical
Pilot Duty Rating28 VA at 24 VAC, 125 VA at 120 VAC
Pressure Rating0.1 to 10 "-WC, 14 "-WC Over
Switching ActionSPDT
Temperature Rating-40 to 190
VA Rating125
Voltage Rating24/120/277
Additional Information
CSA Certified|RoHS Compliant|UL Listed
Features & Benefits

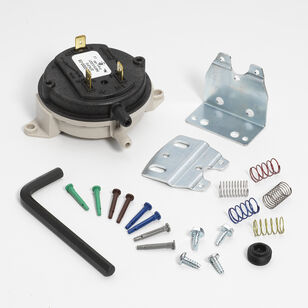

- Air pressure sensing switch Calibration springs (5 options) Orifice flows (4 options) Mounting brackets (2 options) Calibration tool (hex wrench) Works in a variety of harsh conditions HVAC contractors now have a one-stop option to meet all their air pressure switch needs Straight type sample line connection for use with 3/16 in flexible rubber tubing Includes air pressure sensor switch, (5) calibration springs, (4) orifice flows, (2) mounting brackets, calibration tool (hexagonal wrench)
Marketing Information
The Robertshaw® 2374-510 Air Pressure Sensing Switch has a glass-filled polycarbonate housing containing a sensing diaphragm and an integral snap-acting switch with three male 90 deg quick-connect terminals. The switch can sense positive, negative or differential air pressure. The field adjustable set point range of this switch is 0.10 in WC to 10.0 in WC. Using the switch accessories contained in this kit, the switch can be applied to a wide variety of residential and light commercial HVAC applications.
Robertshaw® 2374-510 Air Pressure Sensing Switch Kit, 5 A, 24/120/277 VAC, Quick Connect, SPDT, Polycarbonate
BrandRobertshaw®
MFG #2374-510
Keller #1503266
