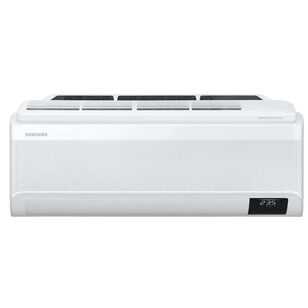

Samsung WindFree™ 3.0i AR07CSKCPWKNCV Multi-Zone Indoor Unit, 208 to 230 V, 0.3 A, 1 ph Phase, HIPS
Samsung WindFree™ 3.0i AR07CSKCPWKNCV Multi-Zone Indoor Unit, 208 to 230 V, 0.3 A, 1 ph Phase, HIPS
Samsung Multi-Zone Indoor Unit, 208 to 230 V, 0.3 A, 27 W, 60 Hz, 1 ph, 3 Fan Speeds, 7000 Btu/hr Cooling, 7500 Btu/hr Heating, 309 to 350 cfm Cooling, 340 to 381 cfm Heating, Connection Type: Flared, 37 dBA Sound Level, Wall Mounting, HIPS, 8-7/16 in Overall Length, 32-5/16 in Overall Width, 13-9/16 in Overall Height, Additional Information: 3/8 in Gas Pipe Size, 1/4 in Liquid Pipe Size, R-410A Refrigerant Type
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$801.36 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Marketing Information
Attributes
BrandSamsung
Additional Information3/8 " Gas Pipe Size, 1/4 " Liquid Pipe Size, R-410A Refrigerant Type
Amperage Rating0.3
BTU Rating7000 Btu/hr Cooling, 7500 Btu/hr Heating
CFM Rating309 to 350 cfm Cooling, 340 to 381 cfm Heating
Connection TypeFlared
Correct Item GroupWall Mounted Indoor Units
Frequency Rating60
MaterialHIPS
Mounting TypeWall
Number of Fan Speeds3
Overall Height13-9/16
Overall Length8-7/16
Overall Width32-5/16
Phase1
Power Rating27
Sound Level37
Voltage Rating208 to 230
Additional Information
ETL Listed|UL 60335-2-40
Features & Benefits
- The indoor unit shall feature WindFree™ mode. In cooling mode, as room temperature nears set temperature, the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit preventing cold air drafts on occupants The indoor unit shall be capable of sensing dust particulate matter in the air stream, and displaying the appropriate measured data on the unit's display The indoor unit shall have Wi-Fi capability as standard The indoor unit shall be powered by the outdoor unit Indoor unit chassis shall be UL94 V0 with a galvanized steel mounting bracket The indoor unit shall have easy-access to wire, pipe, and drain connections via access panel on the bottom of the unit for simple installation and service The indoor unit shall include a factory installed electrostatic precipitator capable of breaking down dust and particulate matter as small as 0.3 microns The heat exchanger shall be mechanically bonded fin to copper tube The indoor fan shall be a single, antibacterial cross-flow type Three fan speed settings and auto settings Automatic (motorized) vertical swing (up/down) and horizontal swing (left/right) louvers The system shall have a built in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app (Android, iOS) Dual set temperature support when connected to MWR-WG00UN Advanced Wired Controller The indoor unit shall have a simple connection for overflow detection devices or any other normally closed contact for simple unit shutdown The indoor unit shall ship with a wireless controller, holder, and batteries Wired controller options available Interconnect control wire between outdoor and indoor units shall be 16AWG X 2 Auto Clean Function 7-segment digital display on front of unit to display temperature and unit status Auto changeover
Marketing Information
High-wall unit that features a PM1.0 electronic air cleaner and air quality monitor. Samsung's exclusive WindFree™* cooling technology provides users with a cool indoor climate without the discomfort of direct cold airflow. It's an advantage no other system can match.
