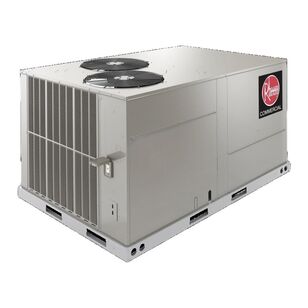

Rheem® Renaissance™ Line RHPDYB120ACF000AAAA0 Packaged Heat Pump, 68000 to 112000 Btu/hr Heating, 120000 Btu/hr Cooling
Rheem® Renaissance™ Line RHPDYB120ACF000AAAA0 Packaged Heat Pump, 68000 to 112000 Btu/hr Heating, 120000 Btu/hr Cooling
Rheem® Packaged Heat Pump, Classic® Series, RHPDYB Model, 120000 Btu/hr Cooling BTU Rating, 68000 to 112000 Btu/hr Heating BTU Rating, 208/230 V Voltage Rating, 10.36 kW Wattage, 2 hp Rating, 60 Hz Frequency Rating, 3 ph Phase, 1725 rpm Rotational Speed, Scroll Compressor Type, 4000 cfm Rating, 14.1 IEER Rating, 11 EER Rating, 3/4 in Connection, R-454B Refrigerant Type, 1 Number of Stages, 88 dB Sound Level, Direct Drive Type, 13.2 sq-ft Face Area, 1-Row Coil Rating, 20 FPI Fins per Inch, 20 x 20 x 2 in Filter Size, 125 deg F Temperature Rating, 50 in H x 90-1/8 in W x 59-1/2 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$43,332.04 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
CFM Rating4000
Coil Rating13.2 sq-' Face Area, 1-Row
Compressor TypeScroll
Connection Size3/4
Cooling BTU Rating120000
Dimensions50 " H x 90-1/8 " W x 59-1/2 " D
Drive TypeDirect
EER Rating11
Filter Size20 x 20 x 2
Fins per Inch20
Frequency Rating60
Heating BTU Rating68000 to 112000
HP Rating2
IEER Rating14.1
IndustryHVAC
ModelRHPDYB
Number of Stages1
Phase3
Refrigerant TypeR-454B
Rotational Speed1725
SeriesClassic Series
Sound Level88
Temperature Rating125
Voltage Rating208/230
Wattage10.36
Additional Information
ASHRAE 90.1
Features & Benefits
- Patented flex-fit filter rack and qwik-clean drain pain for quick, easy service and maintenance PlusOne® SmartShield™ with patented microchannel defrost system Field convertible airflow (downflow and horizontal) PlusOne® Diagnostics come standard through CoreCommand™ with easy-to-read and understand fault codes, history, and input/output options to meet building compliance needs Optional ClearControl™ includes factory-installed Direct Digital Control (DDC) and sensors for easy connectivity through Modbus®, LonWorks®, or BACnet®
Marketing Information
Renaissance products are designed with a flexible footprint, thoughtfully engineered for easy, direct replacement of most other manufacturer's products without a roofcurb adapter. These units also boast industry-leading serviceability features, including the slide out, qwik-clean drain pan, the qwik-slide blower assembly, tool-less access to the patented flex-fit filter rack, and easy-access external gauge ports. Units meet or exceed ASHRAE 90.1 energy efficiency levels and are rigorously SEET tested to perform reliably in extreme environments, delivering powerful cooling operation up to 125degF.
Rheem® Renaissance™ Line RHPDYB120ACF000AAAA0 Packaged Heat Pump, 68000 to 112000 Btu/hr Heating, 120000 Btu/hr Cooling
BrandRheem®
MFG #RHPDYB120ACF000AAAA0
Keller #1505601
