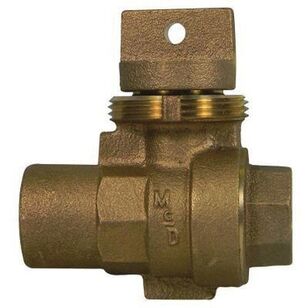

Mc.Donald® 76005 Series 5142-337 Ball Valve, 1-1/4 in Nominal, FPT, 150 psig, Brass Body
Mc.Donald® 76005 Series 5142-337 Ball Valve, 1-1/4 in Nominal, FPT, 150 psig, Brass Body
Mc.Donald® Ball Valve, 76005 Series, 1-1/4 in Nominal, FPT Connection, 150 psig, PTFE Trim, EPDM Softgoods, Brass Body, 4.94 in Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$441.33 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandMc.Donald®
Body MaterialBrass
Connection TypeFPT
Height4.94
IndustryPlumbing
Nominal Size1-1/4
Pressure Rating150
Series76005 Series
Softgoods MaterialEPDM
Trim MaterialPTFE
Additional Information
ANSI 61, 372 Specified|ASTM B62, B584 Specified|AWWA C800 Compliant|NSF 61, 372 Certified|UNS C89833, C83600 85-5-5-5 Specified
Features & Benefits
- PTFE coated brass ball Rated for 150 psig water pressure with cast directional arrow Blowout-proof EPDM port seals Joints sealed with EPDM O-rings and thread locker
Marketing Information
A.Y. McDonald stop and drain ball valves maintain their low turning torques and bubble-tight 150 psig water pressure rating due to the PTFE coated brass ball that is supported by two blowout-proof EPDM seals. The end piece joint is sealed with an EPDM O-ring and thread locker. McDonald stop and drain ball curb stops offer positive shut-offs from inlet direction only and are available with a wide variety of end connections or Minneapolis curb box threads. A brass 2 in square operating head that is easily pinned to existing curb stops.
Mc.Donald® 76005 Series 5142-337 Ball Valve, 1-1/4 in Nominal, FPT, 150 psig, Brass Body
BrandMc.Donald®
MFG #5142-337
Keller #1506197
My Part ##
Last Ordered#
$441.33 / ea
