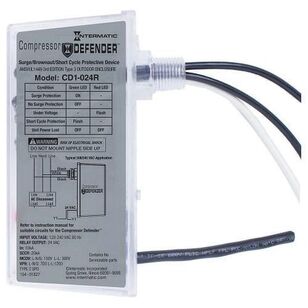

Intermatic® CD1-024R Under Voltage, 120 to 240 VAC, 2 A
Intermatic® CD1-024R Under Voltage, 120 to 240 VAC, 2 A
Intermatic® Under Voltage, 120 to 240 VAC, 2 A, 60 Hz, 1 ph, -40 to 158 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandIntermatic®
Amperage Rating2
Frequency Rating60
IndustryLeisure
Phase1
Temperature Rating-40 to 158
Voltage Rating120 to 240
Additional Information
AHRI 110-1012
Features & Benefits
- Protect your residential and light commercial compressors Surge, brownout and short cycle protection with 120, 208 and 240 VAC loads LED indicators provide real-time status updates for quick and easy troubleshooting For use inside condensing units or externally on disconnects Complies with ANSI/AHRI standard 110-2012 range B2 for voltage drop protection Auto-sense voltage technology 120 - 240 VAC universal input voltage Meets ANSI/UL 1449 3rd edition requirements Thermostat relay: normally closed relay, 24 VAC Type 2 SPD Maximum continuous overvoltage (MCOV): L-N/G: 150 V, L-L: 300 V Voltage protection rating (VPR): L-N/G: 700, L-L:1200 SCCR (short circuit current rating): 20 kA Under voltage response time - three line cycles Short cycle delay: three min Enclosure - type 3 outdoor Three years limited warranty TPMOV (thermally protected metal oxide varistor) surge protection technology
Intermatic® CD1-024R Under Voltage, 120 to 240 VAC, 2 A
BrandIntermatic®
MFG #CD1-024R
Keller #1506402
My Part ##
Last Ordered#
Call for Price / ea
