NIBCO T585-70-1IN BRZ BALL VALVE NOT FOR POTABLE USE
NIBCO T585-70-1IN BRZ BALL VALVE NOT FOR POTABLE USE

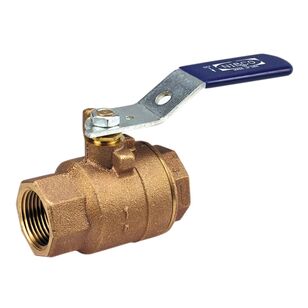

NIBCO® Ball Valve, 1 in Nominal, FIPT Connection, Full Port, 600 psi, 3.34 in Inlet to Outlet Length, 2.38 in Top to Inlet Center, 1 in Opening, Lever Handle Operator, Bronze Body, RPTFE Seat, Silicon Bronze Alloy Stem, RPTFE Seal, PTFE Packing, Steel Handle, Brass Ball, 400 deg F, 5 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$131.10 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialBrass
Body MaterialBronze
Connection TypeFIPT
Dimensions5 " L
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length3.34
Nominal Size1
Opening Size1
Operator TypeLever Handle
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seal MaterialRPTFE
Seat MaterialRPTFE
Stem MaterialSilicon Bronze Alloy
Temperature Rating400
Top to Inlet Center2.38
Warranty5 Year Limited
Additional Information
MSS SP-110
Features & Benefits
- Chrome-plated brass ball, silicon bronze stem Blowout-proof stem Threaded end connections Dezincification-resistant
Documents
Marketing Information
The NIBCO® bronze ball valve provides bubble tight shut-off at 600 psi. With the reinforced PTFE seat ring and brass hard chrome-plated ball, the valve exhibits high-chemical resistance properties. The two piece valve is recommended for many high-pressure applications, HVAC, hot and cold domestic water, low pressure steam and compressed air. The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The two piece valve features thread ends for easy installation. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® 5 year 125% limited warranty.
NIBCO T585-70-1IN BRZ BALL VALVE NOT FOR POTABLE USE
BrandNIBCO®
MFG #NL9500A
