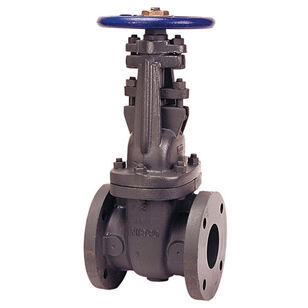

NIBCO F-617-O-6IN IB GATE VLV
NIBCO F-617-O-6IN IB GATE VLV
NIBCO® Gate Valve, F-617-O Series, 6 in Nominal, Flanged Connection, 125 psi, Pressure Class: Class 125, Air, Gas, Water Media, 10-1/2 in Inlet to Outlet Length, 30.73 in Top to Inlet Center, Cast Iron Body, Cast Copper Alloy Seat, Copper Alloy Stem, Brass Trim, Cast Iron Handle, Synthetic Fiber Softgoods, Standard Handwheel Operator, 450 deg F, Material Standard: ASTM B16 C36000, ASTM B584 C84400, ASTM A126 B, ASTM A307, ASTM A536, ASTM A563, ASTM B783, ASTM A307, ASTM B140 C31600, 36.56 in H x 12 in W 36.56 in H x 12 in W, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,660.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
ApplicationFor commercial and industrial applications, including hot and cold water, HVAC, steam, gas and other general utility services
Body MaterialCast Iron
Connection TypeFlanged
Dimensions36.56 " H x 12 " W
Domestic/ImportDomestic
Handle MaterialCast Iron
IndustryPlumbing
Inlet to Outlet Length10-1/2
Material StandardASTM B16 C36000, ASTM B584 C84400, ASTM A126 B, ASTM A307, ASTM A536, ASTM A563, ASTM B783, ASTM A307, ASTM B140 C31600
MediaAir, Gas, Water
Nominal Size6
Operator TypeStandard Handwheel
Pressure ClassClass 125
Pressure Rating125
Seat MaterialCast Copper Alloy
SeriesF-617-O Series
Softgoods MaterialSynthetic Fiber
Stem MaterialCopper Alloy
Temperature Rating450
Top to Inlet Center30.73
Trim MaterialBrass
Warranty5 Year Limited
Additional Information
MSS SP-70 Certified
Features & Benefits
- Outside screw and yoke Bolted bonnet Solid wedge Iron body bronze-mounted (IBBM)
Documents
Marketing Information
The NIBCO® flanged cast-iron gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, gas and other general utility services. Choose NIBCO® gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® pressure rated valves are backed by the NIBCO® 5 year 125% limited warranty.
