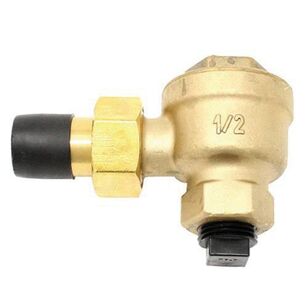

Spirax Sarco RTA-125 Series 70564 Thermostatic Steam Trap, 1/2 in Nominal, Brass, Red, 2.2 in H
Spirax Sarco RTA-125 Series 70564 Thermostatic Steam Trap, 1/2 in Nominal, Brass, Red, 2.2 in H
Spirax Sarco Thermostatic Steam Trap, Series: RTA-125 Series, 1/2 in Nominal, MNPT Union x FNPT, 125 psi, Brass, Red, 23 deg F, 2.2 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$139.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSpirax Sarco
ColorRed
Connection TypeMNPT Union x FNPT
Dimensions2.2 " H
MaterialBrass
Nominal Size1/2
Pressure Rating125
SeriesRTA-125 Series
Temperature Rating23
Additional Information
ASTM B124, ASTM B62
Features & Benefits
- Balanced pressure thermostatic steam traps adjust automatically to varying steam pressures Excellent air venting characteristics during plant start-up and during normal operation Large discharge capacities for their size Robust design of the internals gives a good life expectancy Typical applications-vapor or vacuum two pipe heating systems, radiators, convectors, fintube, hospital blanket warmers, sterilizers and stills, laundry and kitchen equipment, and small process equipment All stainless steel internals extend working life and reduces trap maintenance With optional extended inlet spud Maximum allowable pressure-125 lbf/sq-in at up to 353 deg F Maximum allowable temperature-353 deg F at 0-125 lbf/sq-in Horizontal installation
Spirax Sarco RTA-125 Series 70564 Thermostatic Steam Trap, 1/2 in Nominal, Brass, Red, 2.2 in H
BrandSpirax Sarco
MFG #70564
Keller #156198
My Part ##
Last Ordered#
$139.00Â /Â ea
