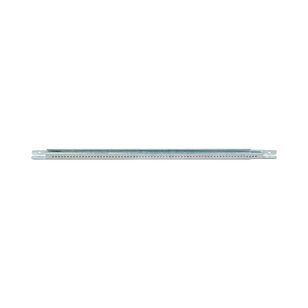

SIOUX 523-24 PWR BAR USB BRKT ONLY
SIOUX 523-24 PWR BAR USB BRKT ONLY
Sioux Chief Bracket Kit, 523-24 Series, 150 lb Weight, Fits Pipe Size: 1/4 to 1-1/8 in, Steel, Galvanized, 0.15 in Mounting Hole Diameter, 14 in Center-to-Center Length, 20 ga Thickness, 14 to 16 in Length, 0.602 in Width, 0.529 in Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5.47Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Center-to-Center Length14
Color/FinishGalvanized
FinishGalvanized
Fits Pipe Size1/4 to 1-1/8
Height0.529
IndustryPlumbing
Length14 to 16
MaterialSteel
Mounting Hole Diameter0.15
Series523-24 Series
Thickness20
Weight Capacity150
Width0.602
Additional Information
cUPC Certified
Features & Benefits
- Patent #6,446,915 and #6,402,096 Adjustable galvanized steel bracket with up to three tough, adjustable clamps Brackets available for 9" - 16" openings, or 14" - 26" openings Clamps secure 1/4" - 1" CTS copper, CPVC or PEX
Documents
Marketing Information
Sioux Chief 523 Series PowerBar universal bracketing system shall be used where necessary for supporting tube or stub outs in residential and commercial applications. Bracket shall be corrosion resistant and adjust telescopically from 14" - 26", and have dual fastening tabs on each end. Pilot holes shall be provided on three sides of the bracket measuring .1". Bracket shall include UVresistant adjustable Touchdown™ clamps with elastomer inserts for securing and supporting tube, pipe, plastic or steel conduit. Bracketing system shall be compatible with copper, PEX and CPVC and IAPMO certified.
SIOUX 523-24 PWR BAR USB BRKT ONLY
BrandSioux Chief
MFG #523-24
Keller #156898
My Part ##
Last Ordered#
$5.47Â /Â ea
