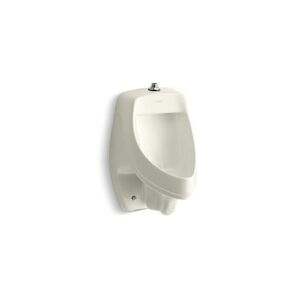

Kohler® Dexter™ 5016-ET-96 Urinal, 0.5 gpf, 1 gpf Flush Rate, Top Spud Location, Wall Mounting, Vitreous China
Kohler® Dexter™ 5016-ET-96 Urinal, 0.5 gpf, 1 gpf Flush Rate, Top Spud Location, Wall Mounting, Vitreous China
Kohler® Urinal, Dexter™ Collection, 0.5 gpf, 1 gpf Flush Rate, Siphon Jet Flushing System, Top Spud Location, 17-1/2 in Rough-In, 3/4 in Inlet Spud, 2 in Outlet Tap, Wall Mounting, Vitreous China, Biscuit, 13-1/2 in Length, 14-1/2 in Width, 20-3/8 in Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$327.60 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandKohler®
CollectionDexter
ColorBiscuit
Flush Rate0.5 gpf, 1 gpf
Flushing SystemSiphon Jet
Height20-3/8
Inlet Spud Size3/4
Length13-1/2
MaterialVitreous China
Mounting TypeWall
Outlet Tap Size2
Rough-In Size17-1/2
Spud LocationTop
Width14-1/2
Shipping Dimensions (L x W x H)23.63" x 15.13" x 16.75"
Additional Information
ADA Compliant|ASME A112.19.2|CSA B45.1|DOE Energy Policy Act 1992|EPA WaterSense Certified|ICC/ANSI A117.1|UL GreenGuard Certified
Features & Benefits
- Siphon jet 3/4" (19 mm) top spud 0.5 or 1.0 gpf (1.9 or 3.8 lpf) based on valve selected Includes inlet and outlet spuds and hangers Includes anti-backsplash wall 14-1/2" (368 mm) extended rim 0.5 or 1.0 gpf (1.9 or 3.8 lpf)
Documents
Marketing Information
The straightforward design of the Dexter elongated urinal brings KOHLER styling and functionality to any application. The compact size is ideal for smaller public restrooms, and the back-wall geometry limits splashback for a cleaner user experience. This model features a 3/4" top spud.
Kohler® Dexter™ 5016-ET-96 Urinal, 0.5 gpf, 1 gpf Flush Rate, Top Spud Location, Wall Mounting, Vitreous China
BrandKohler®
MFG #K-5016-ET-96
Keller #157953
My Part ##
Last Ordered#
$327.60 / ea
