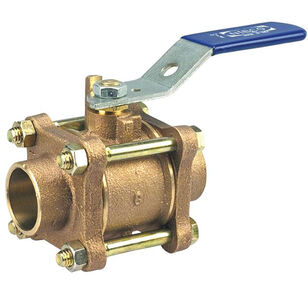

NIBCO S595-Y-2IN CXC BALL VALVE NOT FOR POTABLE USE
NIBCO S595-Y-2IN CXC BALL VALVE NOT FOR POTABLE USE
NIBCO® Ball Valve, S-595-Y Series, 2 in Nominal, Female Solder Cup Connection, Full Port, 600 psi, Air, Gas, Water Media, Manual Actuator, 2 in Orifice, 5.78 in Inlet to Outlet Length, Quarter-Turn Lever Handle Operator, Material Standard: ASTM B16 C36000, C37700, C65100, C69430, C84400, Bronze Body, PTFE Seat, Silicon Bronze Alloy Stem, PTFE Seal, Bronze Trim, PTFE Packing, Steel Handle, Brass Ball, FKM/PTFE Softgoods, 400 deg F, 9.57 in L x 3.9 in W x 5.58 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,183.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Actuator TypeManual
ApplicationFor hot and cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water
Ball MaterialBrass
Body MaterialBronze
Connection TypeFemale Solder Cup
Dimensions9.57 " L x 3.9 " W x 5.58 " H
Domestic/ImportDomestic
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length5.78
Material StandardASTM B16 C36000, C37700, C65100, C69430, C84400
MediaAir, Gas, Water
Nominal Size2
Operator TypeQuarter-Turn Lever Handle
Orifice Size2
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seal MaterialPTFE
Seat MaterialPTFE
SeriesS-595-Y Series
Softgoods MaterialFKM/PTFE
Stem MaterialSilicon Bronze Alloy
Temperature Rating400
Trim MaterialBronze
Warranty5 Year Limited
Additional Information
MSS SP-110 Specified
Features & Benefits
- Blowout-proof stem design Dezincification-resistant
Documents
Marketing Information
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close and bubble tight shut-off at 600 psi. The PTFE seat ring and brass hard chrome-plated ball exhibits high-chemical resistance properties and is recommended for many high-pressure applications. Options include NIB-SEAL® insulated handle that eliminates condensate. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® 5 year 125% limited warranty.
NIBCO S595-Y-2IN CXC BALL VALVE NOT FOR POTABLE USE
BrandNIBCO®
MFG #NJ9300D
Keller #159552
My Part ##
Last Ordered#
$1,183.00 / ea
