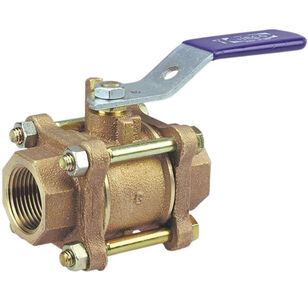

NIBCO T595-Y-1-1/2 THD BALL VALVE NOT FOR POTABLE USE
NIBCO T595-Y-1-1/2 THD BALL VALVE NOT FOR POTABLE USE
NIBCO® 3-Piece Ball Valve, T-595-Y Series, 1-1/2 in Nominal, FIPT Connection, Full Port, 600 psi, Air, Gas, Vacuum, Water Media, 4.56 in Inlet to Outlet Length, 2.97 in Top to Inlet Center, 1-1/2 in Opening, Quarter-Turn Lever Handle Operator, Material Standard: ASTM B371/B584, Bronze Body, PTFE Seat, Silicon Bronze Alloy Stem, PTFE Seal, Bronze Trim, PTFE Packing, Steel Handle, Brass Ball, 400 deg F, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$649.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialBrass
Body MaterialBronze
Connection TypeFIPT
Domestic/ImportDomestic
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length4.56
Material StandardASTM B371/B584
MediaAir, Gas, Vacuum, Water
Nominal Size1-1/2
Opening Size1-1/2
Operator TypeQuarter-Turn Lever Handle
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seal MaterialPTFE
Seat MaterialPTFE
SeriesT-595-Y Series
Stem MaterialSilicon Bronze Alloy
Temperature Rating400
Top to Inlet Center2.97
Trim MaterialBronze
Warranty5 Year Limited
Shipping Dimensions (L x W x H)14.25" x 59.24" x 16.75"
Additional Information
MSS SP 110
Features & Benefits
- Valve pressure rating 600 psi non-shock cold working pressure Blowout-proof stem Dezincification-resistant
Documents
Marketing Information
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The PTFE seat ring and brass hard chrome-plated ball exhibits high chemical resistance properties and is recommended for many high pressure applications. The three-piece valve features threaded ends for easy installation. Options include NIB-SEAL® insulated handle that eliminates condensate. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® Inc. 5 years 125% limited warranty.
NIBCO T595-Y-1-1/2 THD BALL VALVE NOT FOR POTABLE USE
BrandNIBCO®
MFG #NL9950C
Keller #159641
My Part ##
Last Ordered#
$649.00 / ea
