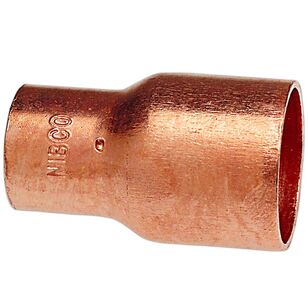

Name: 600R-CB 3/4X1/2 CXC REDUCING COUPLING
Brand: NIBCO®
SKU: 161993
Price: 11.1 USD
Availability: InStock

Attributes

BrandNIBCO®

All ApplicationsCB Cleaned and Bagged for Oxygen Service (Medical

All Basic MaterialCopper

All Type Of ItemFitting

ApplicationsCB Cleaned and Bagged for Oxygen Service (Medical

End ConnectionSolder

Height0.96"

IndustryPlumbing

Length1.68"

Made in USATrue

MaterialCopper

Metal End Connection TypeC x C

Mpg08

Nominal Pipe Size3/4 X 1/2

Nominal Size 13/4".

Nominal Size 21/2".

Potable Water CodeLL Compliant NSF/ANSI 372

Size Dimensions3/4". x 1/2".

System UseCommercial Plumbing, Compressed Air, Fire Protection, Heating, HVAC, Industrial, Irrigation, Lead Free*, Med-gas, Residential Plumbing

Type Of CouplingReducing Size

Type Of FittingCoupling

Weight0.07 lbs.

Width0.96"

Features & Benefits

Lead-free
Dezincification resistant
ASTM B75 Alloy C12200
NSF/ANSI/CAN-61 and 372
Material and workmanship per ASME B16.22
Material, workmanship and dimensions per MSS SP-104
NFPA 99 Health Care Facilities Gas and Vacuum Systems and the Compressed Gas Association, Pamphlet G4.1 (medical gas)
UL 207 Recognized to 700 PSI (select diameters)
Material, workmanship and dimensions per MSS SP-109 (5'' to 8'')

Documents

PVC-C-and-PVC-U-design-and-installation-manual.pdf

Marketing Information

The reducing coupling features solder cups. The fitting provides a means of connecting larger size tube to smaller size tube. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. In addition to its inherent qualities of beauty, durability and low maintenance, copper''''s reusability makes it an ideal application in sustainable projects. NIBCO copper fittings are manufactured in an ISO 9001 certified facility, and backed by a 50-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.
