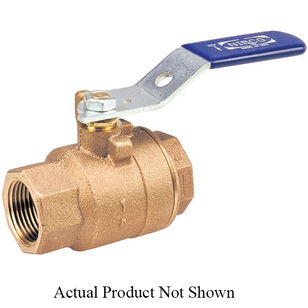

NIBCO T-580-70-1-1/4 BRZ BALL VLV NOT FOR POTABLE USE
NIBCO T-580-70-1-1/4 BRZ BALL VLV NOT FOR POTABLE USE
NIBCO® Ball Valve, T-580-70 Series, 1-1/4 in Nominal, FNPT Connection, Conventional Port, 150 psi, Air, Gas, Water Media, Manual Actuator, 1 in Orifice, 3.94 in Inlet to Outlet Length, 2.63 in Top to Inlet Center, Quarter-Turn Lever Handle Operator, Material Standard: ASTM B16 C36000, C37700, C65100, C69430, C84400, Bronze Body, RPTFE Seat, Silicon Bronze Alloy Stem, Bronze Trim, PTFE Packing, Steel Handle, Brass Ball, Red, 400 deg F, 2.09 in Dia x 6.63 in L x 3.68 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$224.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Actuator TypeManual
ApplicationFor hot and cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water
Ball MaterialBrass
Body MaterialBronze
ColorRed
Connection TypeFNPT
Dimensions2.09 " Dia x 6.63 " L x 3.68 " H
Domestic/ImportDomestic
Handle MaterialSteel
Inlet to Outlet Length3.94
Material StandardASTM B16 C36000, C37700, C65100, C69430, C84400
MediaAir, Gas, Water
Nominal Size1-1/4
Operator TypeQuarter-Turn Lever Handle
Orifice Size1
Packing MaterialPTFE
Port TypeConventional
Pressure Rating150
Seat MaterialRPTFE
SeriesT-580-70 Series
Stem MaterialSilicon Bronze Alloy
Temperature Rating400
Top to Inlet Center2.63
Trim MaterialBronze
Warranty5 Year Limited
Additional Information
MSS SP-110 Specified
Features & Benefits
- Blowout-proof stem design Dezincification-resistant
Documents
Marketing Information
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The two piece valve features NPT end connections for easy installation. Options include NIB-SEAL® insulated handle that eliminates condensate. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® 5 year 125% limited warranty.
