NIBCO S580-70-1-1/2 BRZ BALL VALVE NOT FOR POTABLE USE
NIBCO S580-70-1-1/2 BRZ BALL VALVE NOT FOR POTABLE USE

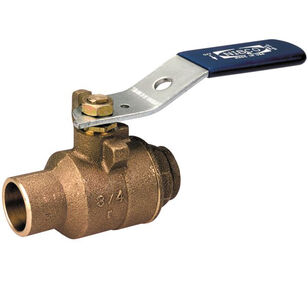

NIBCO® 2-Piece Ball Valve, S-580-70 Series, 1-1/2 in Nominal, Female Solder Cup Connection, Conventional Port, 600 psi, Air, Gas, Steam, Vacuum, Water Media, 4.44 in Inlet to Outlet Length, 3 in Top to Inlet Center, 1-1/4 in Opening, Quarter-Turn Lever Handle Operator, Material Standard: ASTM B584, Bronze Body, Bronze Stem, RPTFE Seal, Bronze Trim, PTFE Packing, Steel Handle, Brass Ball, 400 deg F, 9 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$280.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialBrass
Body MaterialBronze
Connection TypeFemale Solder Cup
Dimensions9 " L
Domestic/ImportDomestic
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length4.44
Material StandardASTM B584
MediaAir, Gas, Steam, Vacuum, Water
Nominal Size1-1/2
Opening Size1-1/4
Operator TypeQuarter-Turn Lever Handle
Packing MaterialPTFE
Port TypeConventional
Pressure Rating600
Seal MaterialRPTFE
SeriesS-580-70 Series
Stem MaterialBronze
Temperature Rating400
Top to Inlet Center3
Trim MaterialBronze
Warranty5 Year Limited
Shipping Dimensions (L x W x H)15.38" x 45.85" x 14"
Additional Information
MSS SP 110
Features & Benefits
- Valve pressure rating 600 psi non-shock cold working pressure Vented ball Blowout-proof stem Dezincification-resistant
Documents
Marketing Information
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. Options include NIB-SEAL® insulated handle that eliminates condensate. The valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam and hot water heating service. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® Inc. 5 years 125% limited warranty.
NIBCO S580-70-1-1/2 BRZ BALL VALVE NOT FOR POTABLE USE
BrandNIBCO®
MFG #NJ8300C
Keller #163095
My Part ##
Last Ordered#
$280.50 / ea
