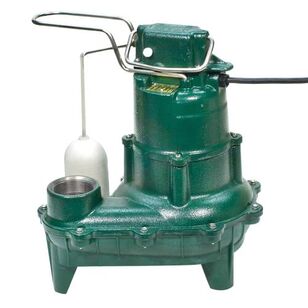

Zoeller® M264 264-0001 Sewage Pump, 115 V, 9.4 A, 60 Hz, 4/10 hp, 90 gpm, Cast Iron
Zoeller® M264 264-0001 Sewage Pump, 115 V, 9.4 A, 60 Hz, 4/10 hp, 90 gpm, Cast Iron
Zoeller® Sewage Pump, Model: M264, 115 V, 9.4 A, 60 Hz Frequency, HP Rating: 4/10 hp, 1725 rpm Speed, 90 gpm Flow Rate, 1 ph, 2 in NPT Discharge, 130 deg F, Dimensions: 14-3/4 in H x 12-1/2 in W, Cast Iron
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$580.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandZoeller®
Amperage Rating9.4
Dimensions14-3/4 " H x 12-1/2 " W
Discharge Size2 " NPT
Flow Rate90
Frequency Rating60
HP Rating4/10
MaterialCast Iron
ModelM264
Phase1
Speed Rating1725
Temperature Rating130
Voltage Rating115
Additional Information
C/US CSA C22.2 Number 108, UL 778, SSPMA Approved
Features & Benefits
- Float-operated, submersible (NEMA 6), two pole switch Durable, cast iron construction - switch cap, motor and pump housing Engineered plastic base Corrosion-resistant powder-coated epoxy finish Hermetically-sealed, automatic reset thermal overload protection Upper and lower sleeve bearings running in bath of oil Carbon and ceramic shaft seal Passes 2 in spherical solids 2 in NPT discharge Class B insulation Permanent split capacitor type 12-1/2 in auto on point, 4-1/2 in auto off point Oil filled cooling Non-clogging vortex impeller type A151 1215 steel motor shaft Neoprene gasket
Zoeller® M264 264-0001 Sewage Pump, 115 V, 9.4 A, 60 Hz, 4/10 hp, 90 gpm, Cast Iron
BrandZoeller®
MFG #264-0001
Keller #163316
My Part ##
Last Ordered#
$580.00 / ea
