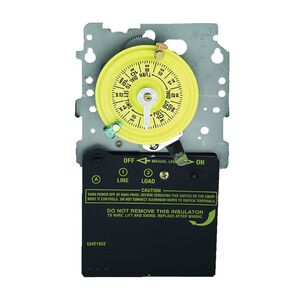

Intermatic® T101M Heavy-Duty Mechanical Time Switch, 120 VAC, 40 A, 60 Hz, 24 hr Timing, SPST
Intermatic® T101M Heavy-Duty Mechanical Time Switch, 120 VAC, 40 A, 60 Hz, 24 hr Timing, SPST
Intermatic® Heavy-Duty Mechanical Time Switch, 120 VAC, 40 A, 60 Hz, 3 W, Contact Configuration: SPST, 1 hr Time Settings, 24 hr Timing, On/Off Ratio: 12 per day, 1000 VA at 120 to 240 VAC, 60 Hz Pilot Duty, Teeter Terminal Connection, 14 to 8 AWG Wire, Bracket Mounting, Teeter Terminal, -40 to 130 deg F, Additional Information: 1 Circuit
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$100.99 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandIntermatic®
Additional Information1 Circuit
Amperage Rating40
ApplicationFor timing/scheduling On/Off and indoor lighting control
Connection TypeTeeter Terminal
Contact ConfigurationSPST
Frequency Rating60
Includes(1) On/Off Tripper
Mounting TypeBracket
On/Off Ratio12 per day
Pilot Duty Rating1000 VA at 120 to 240 VAC, 60 Hz
Power Rating3
Temperature Rating-40 to 130
Terminal TypeTeeter
Time Settings1
Timing Range24
Voltage Rating120
Warranty1 Year
Wire Size14 to 8
Additional Information
cULus Listed|cCSAus Certified|CSA C22.2 No. 177, LR3730|UL 917
Features & Benefits
- Highest motor load ratings in the industry 12 On/Off operations per day Teeter-type terminals for multiple load connections Can be installed in most Intermatic® enclosures
Intermatic® T101M Heavy-Duty Mechanical Time Switch, 120 VAC, 40 A, 60 Hz, 24 hr Timing, SPST
BrandIntermatic®
MFG #T101M
Keller #173611
My Part ##
Last Ordered#
$100.99 / ea
