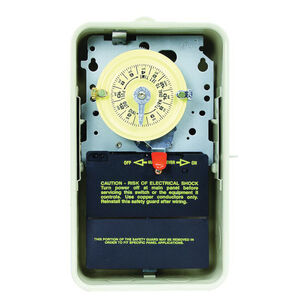

Intermatic® T104R3 Mechanical Time Switch, 208 - 277 VAC, 40 A, 60 Hz, 24 hr Timing, DPST
Intermatic® T104R3 Mechanical Time Switch, 208 - 277 VAC, 40 A, 60 Hz, 24 hr Timing, DPST
Intermatic® Mechanical Time Switch, 208 - 277 VAC, 40 A, 60 Hz, 3 W Power, 2 -Pole, Contact Configuration: DPST, Timing Range: 24 hr, Pilot Duty Rating: 1000 VA, 120 - 277 VAC, 60 Hz, Teeter-Type Terminal Connection, Teeter Terminal, NEMA 3R Enclosure, Enclosure Type Material: Metal, Gray, -40 to 130 deg F, 10-1/8 in H x 6-1/2 in W x 3-5/8 in D, 1-Circuit, 16 A Ballast Load Rating, 10 A at 250 VAC Heater Control Output, 1/2 in and 3/4 in Back, (2) 1/2 in and 3/4 in Bottom Knockout Size, For Use With LED
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$175.74 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Additional Information1-Circuit, 16 A Ballast Load Rating, 10 A at 250 VAC Heater Control Output, 1/2 " and 3/4 " Back, (2) 1/2 " and 3/4 " Bottom Knockout Size, For Use With LED
Amperage Rating40
ApplicationFor heater thermostat control, motor control, pump control, water circulation, industrial, commercial and residential use
ColorGray
Connection TypeTeeter-Type Terminal
Contact ConfigurationDPST
Dimensions10-1/8 " H x 6-1/2 " W x 3-5/8 " D
Enclosure TypeNEMA 3R
Enclosure Type MaterialMetal
Frequency Rating60
IndustryLeisure
ItemApplicationCompatibilities_enLED
ItemElectronicBallastLoadRatings_en16 A, 120 VAC, 16 A, 208 VAC, 16 A, 240 VAC, 16 A, 277 VAC
ItemElectronicBallastLoadRatingsRanges_en16 A, 120-277 VAC
ItemEnclosureType_enOutdoor type 3R metal
ItemHeaterControlOutput_en10 A, 250 VAC MAX, 60 Hz
ItemInductiveLoadRatings_en40 A, 277 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 120 VAC, 60 Hz
ItemInductiveLoadRatingsRanges_en40 A, 120-277 VAC, 60 Hz
ItemInputVoltageRanges_en208-277 VAC, 60 Hz
ItemKnockoutDimensionsBack_en1/2" and 3/4" combination
ItemKnockoutDimensionsBottom_en(2) 1/2" and 3/4"
ItemMarket_enCommercial, Residential, Industrial
ItemMaximumOnOffOperations_en12
ItemMotorLoadRatingsRanges_en2 HP, 24 FLA at 120 VAC, 60 Hz, 5 HP, 28 FLA at 240 VAC, 60 Hz
ItemNumberOfCircuits_en1
ItemOperatingTemperatureMaxC54
ItemOperatingTemperatureMaxF130
ItemOperatingTemperatureMinC-40
ItemOperatingTemperatureMinF-40
ItemOperationMode_en24 hr
ItemPilotDutyLoadRatings_en1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz
ItemPilotDutyLoadRatingsRanges_en1000 VA, 120-277 VAC, 60 Hz
ItemPowerConsumptionMaxW_en3 W
ItemProductDepthIn3.625
ItemProductDepthMm92.1
ItemProductHeightIn10.125
ItemProductHeightMm257.2
ItemProductWidthIn6.5
ItemProductWidthMm165.1
ItemResistiveLoadRatings_en40 A, 480 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 120 VAC, 60 Hz, 40 A, 347 VAC, 60 Hz
ItemResistiveLoadRatingsRanges_en40 A, 120-480 VAC, 60 Hz
ItemSwitchType_enDPST
ItemTungstenLoadRatings_en40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
ItemTungstenLoadRatingsRanges_en40 A, 120-277 VAC, 60 Hz
ItemWiringOption_enTerminals
Number of Poles2
Pilot Duty Rating1000 VA, 120 - 277 VAC, 60 Hz
Power Rating3
Temperature Rating-40 to 130
Terminal TypeTeeter
Timing Range24
Voltage Rating208 - 277
Warranty1 Year Limited
Shipping Dimensions (L x W x H)6.56" x 4" x 10.06"
Additional Information
cCSAus Certified|cULus Listed|LEED Certified
Features & Benefits
- Heavy-duty mechanical time switches control a single load Highest motor load ratings in the industry 12 On/Off operations per day One on and one off tripper included Teeter-type terminals for multiple load connections 12 On/Off operations per day
Documents
Marketing Information
Heavy-duty mechanical time switches control a single load
