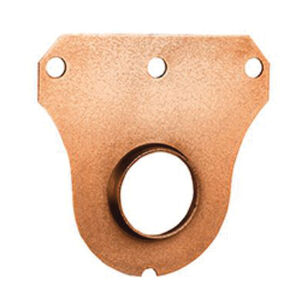

SIOUX 505-39 SOLDER O STRAP 3/4 CTS
SIOUX 505-39 SOLDER O STRAP 3/4 CTS
Sioux Chief Flat Bracket Solder Strap, 505 Series, Fits Tube Size: 3/4 in, Steel Body, Finish: Copper, 1.906 in Width, 1.844 in Height, 17 ga Thickness, For Use With: Copper CTS in Piping Systems
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1.08Â /Â ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Body MaterialSteel
FinishCopper
Fits Tube Size3/4
Height1.844
Nominal Size3/4"
Series505 Series
Suitable For Use WithCopper CTS " Piping Systems
Thickness17
Width1.906
Features & Benefits
- 1/8 in mounting holes align with most conventional brackets Spot solder to copper tube (heat the tube, not the strap)
Documents
Marketing Information
Sioux Chief 505 Series copper eared tube strap shall be used where necessary to support copper CTS in piping systems. Strap can be fastened directly to studs or joists or secured to either copper-plated or galvanized-plated brackets when position of the tube falls within the stud or joist cavity. Pre-drilled, 1/8 in dia mounting holes are provided and designed to align with most conventional support brackets. Strap is to be made of 17 ga copper-plated steel. Strap can also be staked onto preformed copper fittings such as Sioux Chief stub-out elbow #630X246E or can be used as a bottom plate to secure vertical risers.
SIOUX 505-39 SOLDER O STRAP 3/4 CTS
BrandSioux Chief
MFG #505-39
Keller #178510
My Part ##
Last Ordered#
$1.08Â /Â ea
