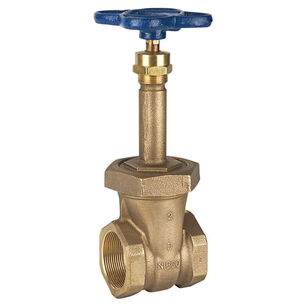

NIBCO T-134-1/2 BRZ R/S GATE VLV NOT FOR POTABLE USE
NIBCO T-134-1/2 BRZ R/S GATE VLV NOT FOR POTABLE USE
NIBCO® Gate Valve, T-134 Series, 1/2 in Nominal, FNPT Connection, 150 psi, Pressure Class: Class 150, Air, Gas, Water Media, 2.31 in Inlet to Outlet Length, 4.81 in Top to Inlet Center, Bronze Body, Bronze Seat, Silicon Bronze Alloy Stem, Bronze Seal, Silicon Bronze Trim, Aramid Fiber/Graphite Packing, Malleable Iron Handle, Standard Handwheel Operator, 366 deg F, Material Standard: ASTM A47, ASTM B371 C69400, C69430, ASTM B99 C65100, ASTM B62, ASTM B124 C84400, ASTM B16-C36000, 5.47 in H x 2.5 in W 5.47 in H x 2.5 in W, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$268.10 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
ApplicationFor commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services
Body MaterialBronze
Connection TypeFNPT
Dimensions5.47 " H x 2.5 " W
Domestic/ImportDomestic
Handle MaterialMalleable Iron
Inlet to Outlet Length2.31
Material StandardASTM A47, ASTM B371 C69400, C69430, ASTM B99 C65100, ASTM B62, ASTM B124 C84400, ASTM B16-C36000
MediaAir, Gas, Water
Nominal Size1/2
Operator TypeStandard Handwheel
Packing MaterialAramid Fibre/Graphite
Pressure ClassClass 150
Pressure Rating150
Seal MaterialBronze
Seat MaterialBronze
SeriesT-134 Series
Stem MaterialSilicon Bronze Alloy
Temperature Rating366
Top to Inlet Center4.81
Trim MaterialSilicon Bronze
Warranty5 Year Limited
Additional Information
MSS SP-80 Certified
Features & Benefits
- Rising stem Solid wedge Union bonnet Dezincification-resistant
Documents
Marketing Information
The NIBCO® bronze gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. Choose NIBCO® gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® gate valves are backed by the NIBCO® 5 year 125% limited warranty.
NIBCO T-134-1/2 BRZ R/S GATE VLV NOT FOR POTABLE USE
BrandNIBCO®
MFG #NL1M006
