Bradford White®

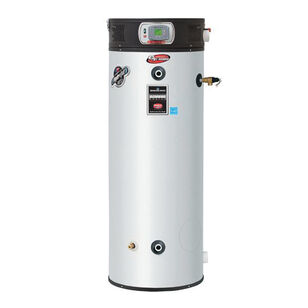

Bradford White® EF-100T-199E-3N Gas Water Heater, 100 gal, 199999 Btu/hr, 58.6 kW-hr, Liquid Propane Gas, Natural Gas
Bradford White®
Bradford White® EF-100T-199E-3N Gas Water Heater, 100 gal, 199999 Btu/hr, 58.6 kW-hr, Liquid Propane Gas, Natural Gas
MFG #EF-100T-199E-3N
Item #180972
Mfr. Part #EF-100T-199E-3N
UPC #671632317394
Bradford White® Gas Water Heater, EF Series, 100 gal Capacity, 199999 Btu/hr, 58.6 kW-hr, 97 % Efficiency, 3 in Vent, Power Direct Vent, 15 A, 120 V, 60 Hz, NPT Connection, 150 psi, Energy Star Compliant: Yes, Liquid Propane Gas, Natural Gas Fuel, Electronic Ignition System, Direct Spark Gas Ignition, CPVC, Finish: Vitraglas® Glass, 180 deg F, 28-1/4 in Dia x 77-5/8 in H, Domestic/Import: Domestic, 10000 ft Altitude
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$13,340.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandBradford White®
Altitude10000 ft
Amperage Rating15
BTU Rating199999
Capacity100
Connection TypeNPT
Dimensions28-1/4 " Dia x 77-5/8 " H
Domestic/ImportDomestic
Efficiency97
Energy Star RatedYes
FinishVitraglas Glass
Frequency Rating60
Fuel TypeLiquid Propane Gas, Natural Gas
Ignition SystemElectronic
Ignition TypeDirect Spark Gas
IndustryPlumbing
MaterialCPVC
Power Rating58.6
Pressure Rating150
SeriesEF Series
Temperature Rating180
Vent Size3"
Vent TypePower Direct
Voltage Rating120
Additional Information
AHRI Certified|ASME HLW Certified|NSF Certified|CSA Certified
Features & Benefits
- Thermal efficiency up to 97% ultra high-efficiency results in less fuel consumption and greater hot water recovery BMS integration via Modbus standard, BACnet® compatible via gateway kit ICON HD® intelligent proven design combines temperature control, diagnostic codes and system ignition functions into a single control board with a digital LCD display Protective powered anodes - each eF Series® model is provided with two powered anode rods Factory installed Hydrojet® sediment reduction system cold water inlet sediment reducing device helps prevent sediment build-up in the tank Vitraglas® lining an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water This formula (Vitraglas®) is fused to the steel surface by firing at a temperature of over 1600 deg F (871 deg C) Direct spark ignition for improved operational dependability and durability Operation mode - two different digitally displayed operation mode have the capability of adjusting the temperature setting up to 180 deg F (82 deg C) and adjusting the degree setting Service mode - eight different digitally displayed service screens can be easily cycled through by pressing the select button There is the capability of adjusting the temperature setting up to 180 deg F (82 deg C), adjusting the degree setting, locking the maximum temperature setting that can be adjusted in operation mode Displaying the temperature sensor reading, displaying the flame current and displaying diagnostic codes Pre-mix power burner a self-compensating negative regulation system automatically increases or decreases fuel flow when a change in combustion air is detected This provides the range for optimum combustion and efficiency (automatic high-altitude compatibility up to 10000 ft/3048 m) Venting versatility the eF Series® can vent vertically or horizontally with either 2 in, 3 in, 4 in or 6 in (51 mm, 7 6mm, 107 mm or 152 mm) PVC, CPVC, polypropylene, stainless steel or ABS (not approved for Canada) vent pipe and is approved for direct vent closed combustion applications or those applications that require inside air for combustion The eF Series® is also approved for unbalanced venting, which means the air intake pipe doesn't have to be vented the same distance as the exhaust Three pass fire tube heat exchanger system the three pass heat exchanger system keeps the hot combustion gases moving at a high-velocity The combination of high-turbulence and velocity causes an enormous rate of heat transfer into the water
