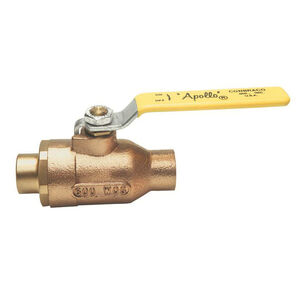

Apollo® 77-200 Series 77-204-01 Ball Valve, 3/4 in, Solder, Bronze, 600 psi
Apollo® 77-200 Series 77-204-01 Ball Valve, 3/4 in, Solder, Bronze, 600 psi
Apollo® Ball Valve, 77-200 Series, 3/4 in Nominal, Solder Connection, Full Port, 2-Piece, Standard, 600 psi, Gas, Steam, Water Media, 0.81 in Orifice, 4.28 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, 0.88 in Opening, Lever Handle Operator, Material Standard: ASTM B16, ASTM B584 C84400, Bronze Body, RPTFE Seat, Brass Stem, PTFE Seal, Brass/PTFE/RPTFE Trim, MPTFE Packing, Steel/Vinyl Handle, Brass Ball, MPTFE/RPTFE/PTFE Softgoods, Contains Lead, Yellow, 500 deg F, 4.28 in L, Domestic/Import: Domestic, Additional Information: 29 inHg Vacuum
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$96.41 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information29 inHg Vacuum
ApplicationFor heating, cooling, steam and vacuum applications
Ball MaterialBrass
Body MaterialBronze
ColorYellow
Configuration2-Piece, Standard
Connection TypeSolder
Dimensions4.28 " L
Domestic/ImportDomestic
Handle MaterialSteel/Vinyl
Inlet to Outlet Length4.28
Material StandardASTM B16, ASTM B584 C84400
MediaGas, Steam, Water
Nominal Size3/4
Opening Size0.88
Operator TypeLever Handle
Orifice Size0.81
Packing MaterialMPTFE
Port TypeFull
Pressure Rating600
Seal MaterialPTFE
Seat MaterialRPTFE
Series77-200 Series
Softgoods MaterialMPTFE/RPTFE/PTFE
Stem MaterialBrass
Temperature Rating500
Top to Inlet Center2.12
Trim MaterialBrass/PTFE/RPTFE
Warranty5 Year
Shipping Dimensions (L x W x H)5.55" x 1.59" x 2.71"
Additional Information
CRN OC10908.5C|MSS-SP-110
Features & Benefits
- Heavy-duty cast bronze body Chromium-plated ball Full-flow, minimum pressure drop Adjustable packing Blowout-proof stem design RPTFE seats and stuffing box ring Made in USA, ARRA compliant
Documents
Marketing Information
The Apollo® 77-200 Series is designed to be soldered into lines without disassembly. This allows a factory tested valve to be installed without disturbing the seats and seals. Designed for soft solder with melt points less than 500 deg F.
