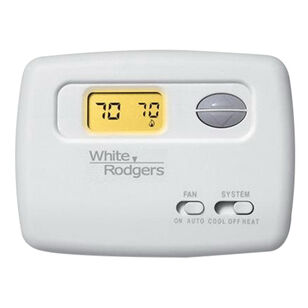

WHITE-RODGERS™ 70 Series 1F78-144 Thermostat, mV to 30 VAC, 1 to 1.5 A, 1.5 to 45 W, (2) AAA Battery, 1 Heat/1 Cool
WHITE-RODGERS™ 70 Series 1F78-144 Thermostat, mV to 30 VAC, 1 to 1.5 A, 1.5 to 45 W, (2) AAA Battery, 1 Heat/1 Cool
WHITE-RODGERS™ Thermostat, 70 Series, mV to 30 VAC, 1 to 1.5 A, 1.5 to 45 W Power, 50/60 Hz Frequency, Changeover: Manual, 1 Heat/1 Cool Stages, Switch Position: HEAT-OFF-COOL (System), AUTO-ON (Fan), 1.2 sq-in Display, 0.8 deg F Fast, 1.5 deg F Slow Heating, 1.2 deg F Fast Cooling Fixed, 1.2 deg F Fast, 1.5 deg F Slow Heating Pump, 0.8 deg F Fast, 1.2 deg F Slow Auxiliary/Emergency Heating Differential, 45 to 90 deg F Settings, 32 to 105 deg F Ambient, 90% Non-Condensing Humidity, (2) AAA Battery, +/-1 deg C Accuracy, Battery Power Source, Horizontal Mounting, Dimensions: 3-13/16 in H x 5-1/8 in W x 1-1/8 in D, White
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$82.56 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWHITE-RODGERS™
Accuracy+/-1
Amperage Rating1 to 1.5
ApplicationFor 1-stage (1H/1C) and gas, oil, electric, millivolt compatible
Battery Type(2) AAA
ChangeoverManual
ColorWhite
Differential Temperature0.8 deg F Fast, 1.5 deg F Slow Heating, 1.2 deg F Fast Cooling Fixed, 1.2 deg F Fast, 1.5 deg F Slow Heating Pump, 0.8 deg F Fast, 1.2 deg F Slow Auxiliary/Emergency Heating
Dimensions3-13/16 " H x 5-1/8 " W x 1-1/8 " D
Display Type1.2
Frequency Rating50/60
Humidity Rating90% Non-Condensing
IncludesB/O Terminals
Mounting TypeHorizontal
Power Rating1.5 to 45
Power SourceBattery
Series70 Series
Stages1 Heat/1 Cool
Switch PositionHEAT-OFF-COOL (System), AUTO-ON (Fan)
Temperature Rating32 to 105 deg F Ambient
Temperature Settings45 to 90
Voltage RatingmV to 30 VAC
Additional Information
NEC Class II
Features & Benefits
- Fossil fuel or electric compatible Large LCD with backlight Selectable celsius or fahrenheit temperature display Electronic accuracy Covers wall marks left by most mechanical thermostats the need for an extra wall plate Permanent memory back-up 32 - 99 deg F display range
WHITE-RODGERS™ 70 Series 1F78-144 Thermostat, mV to 30 VAC, 1 to 1.5 A, 1.5 to 45 W, (2) AAA Battery, 1 Heat/1 Cool
BrandWHITE-RODGERS™
MFG #1F78-144
Keller #184503
My Part ##
Last Ordered#
$82.56 / ea
